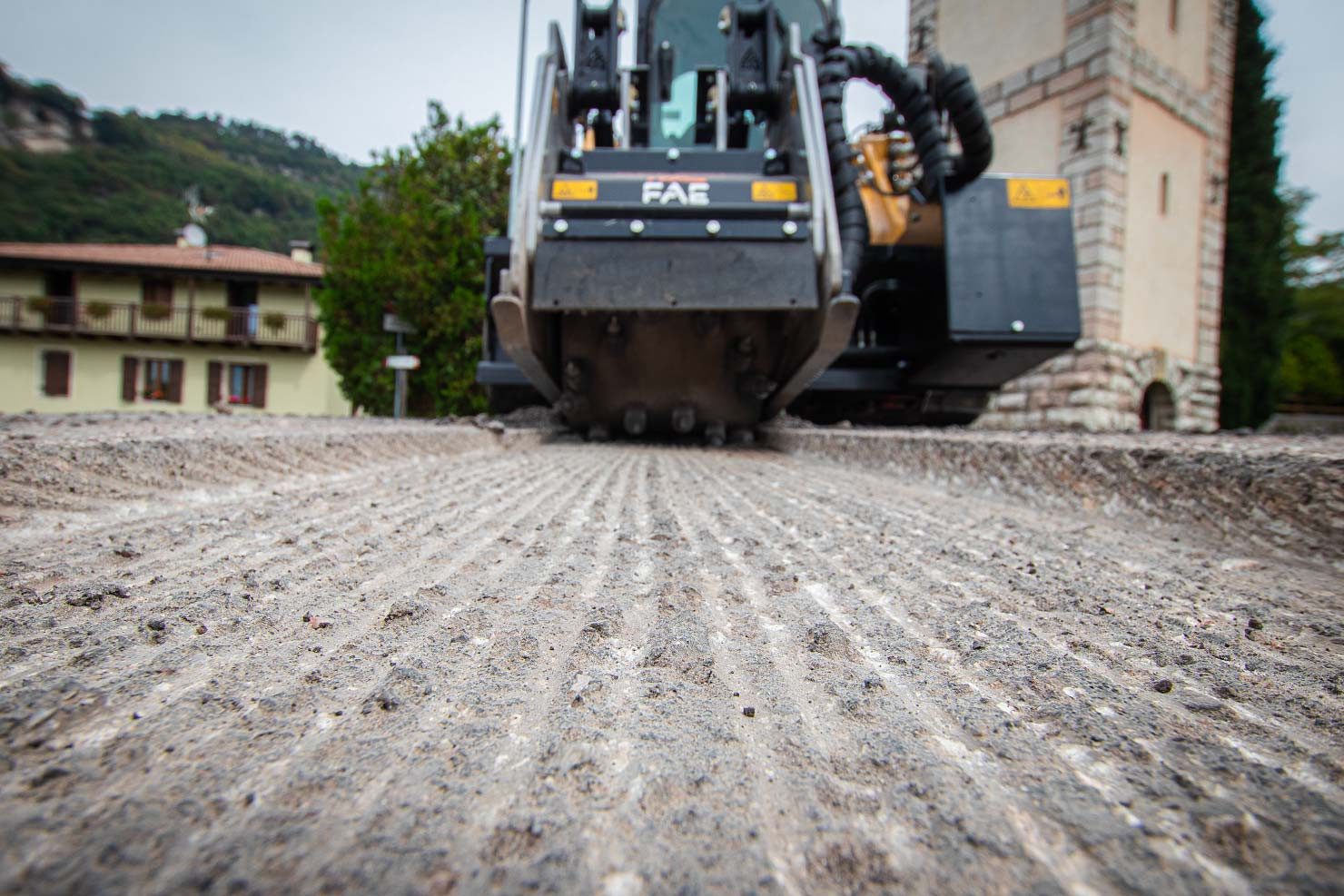

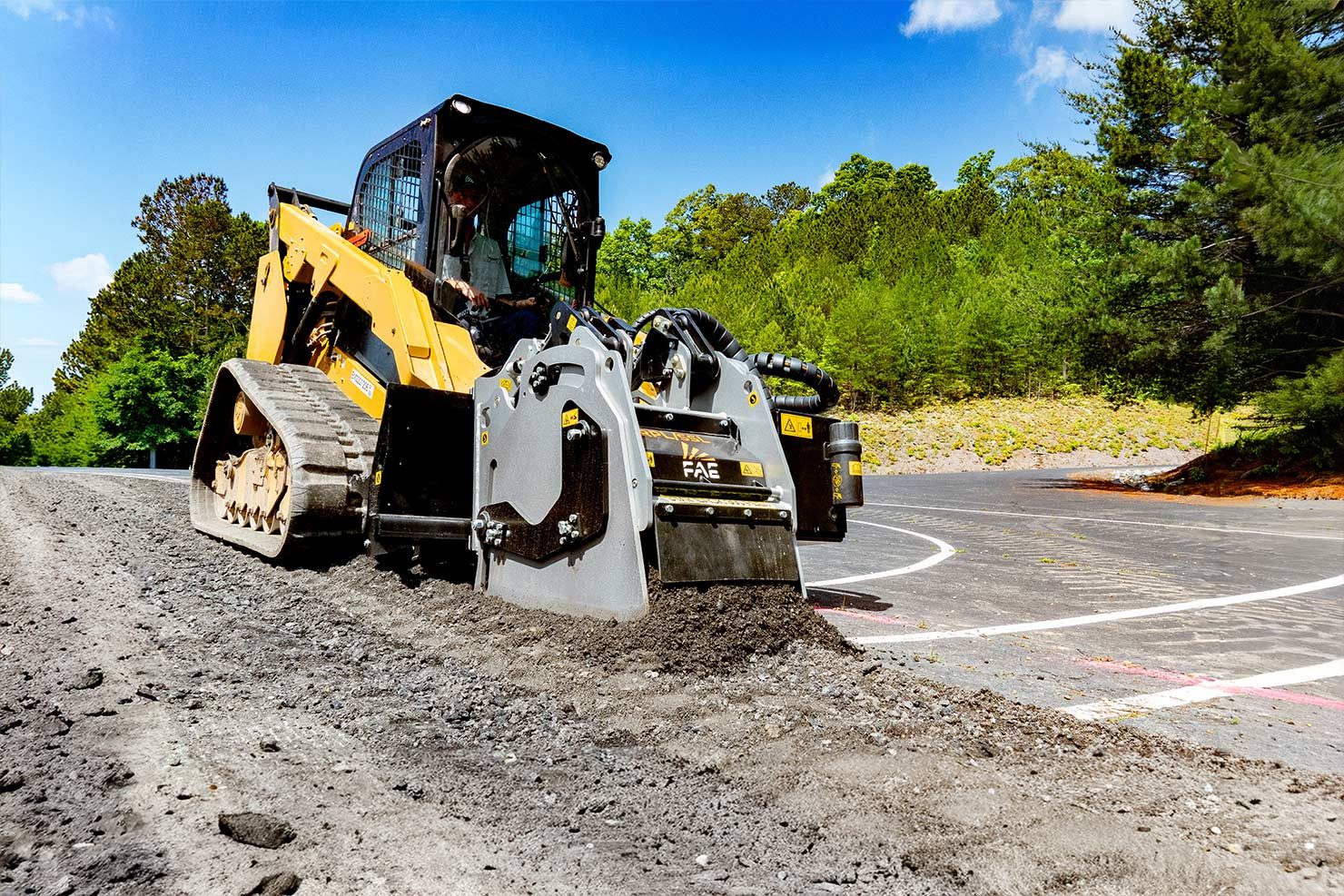

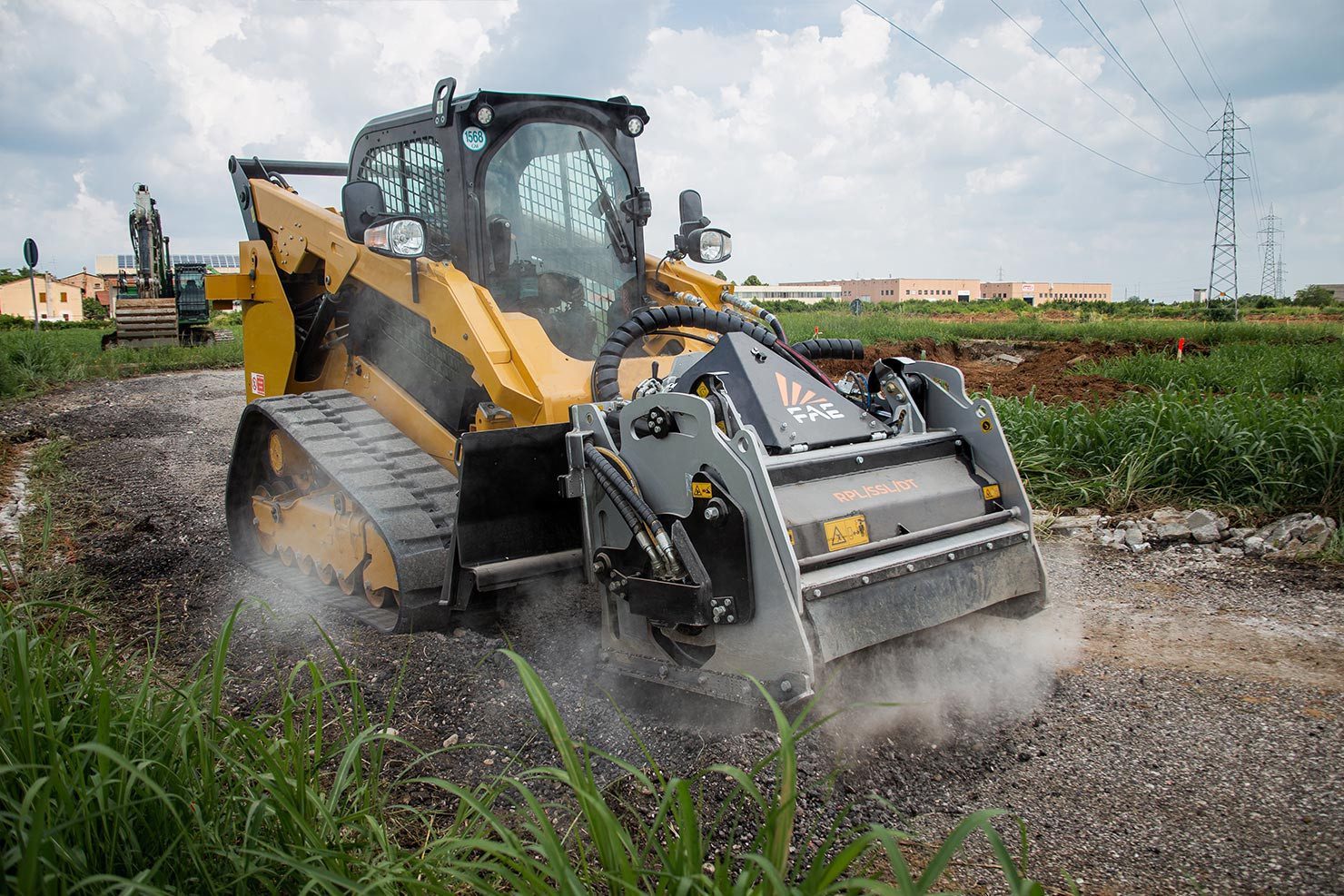

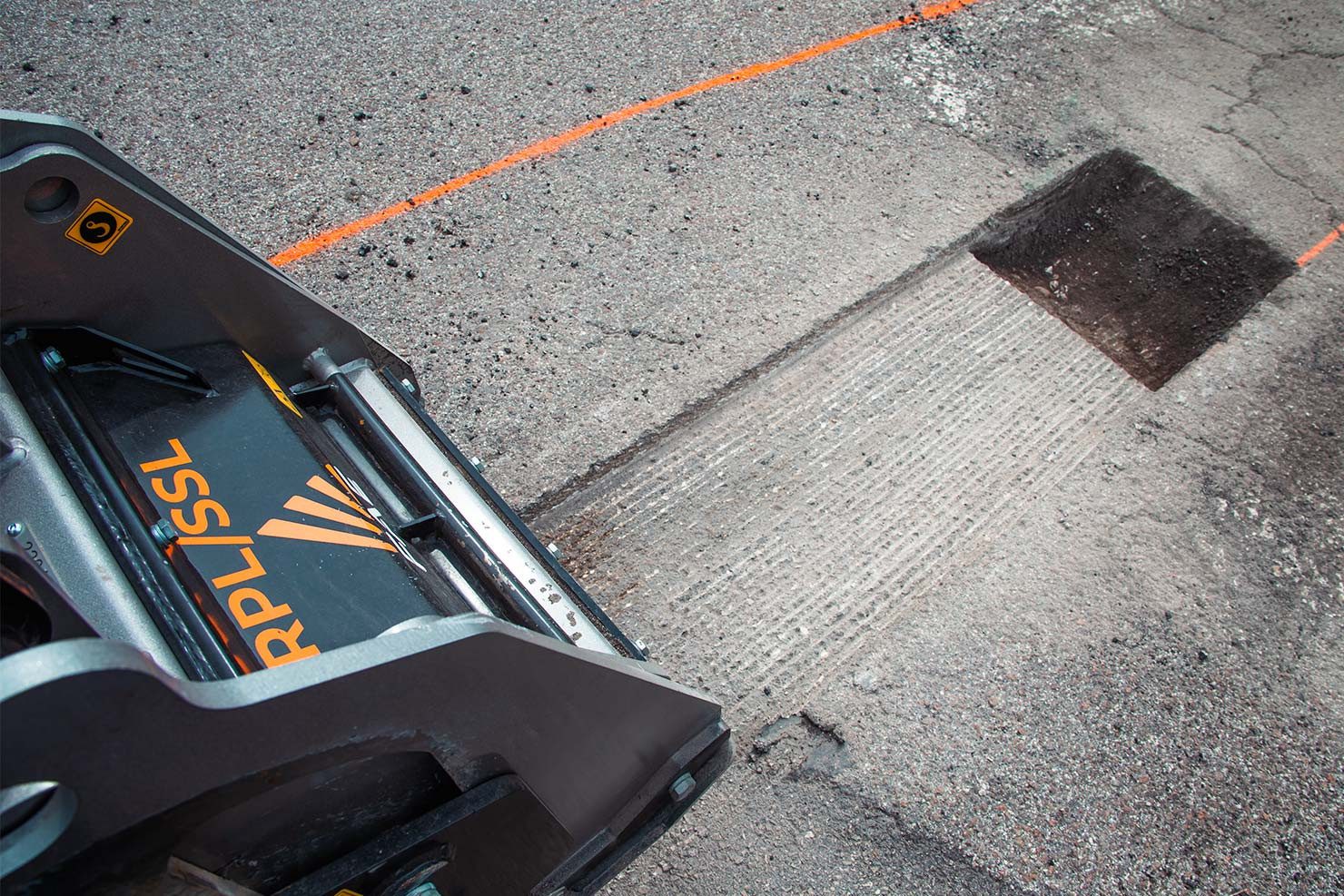

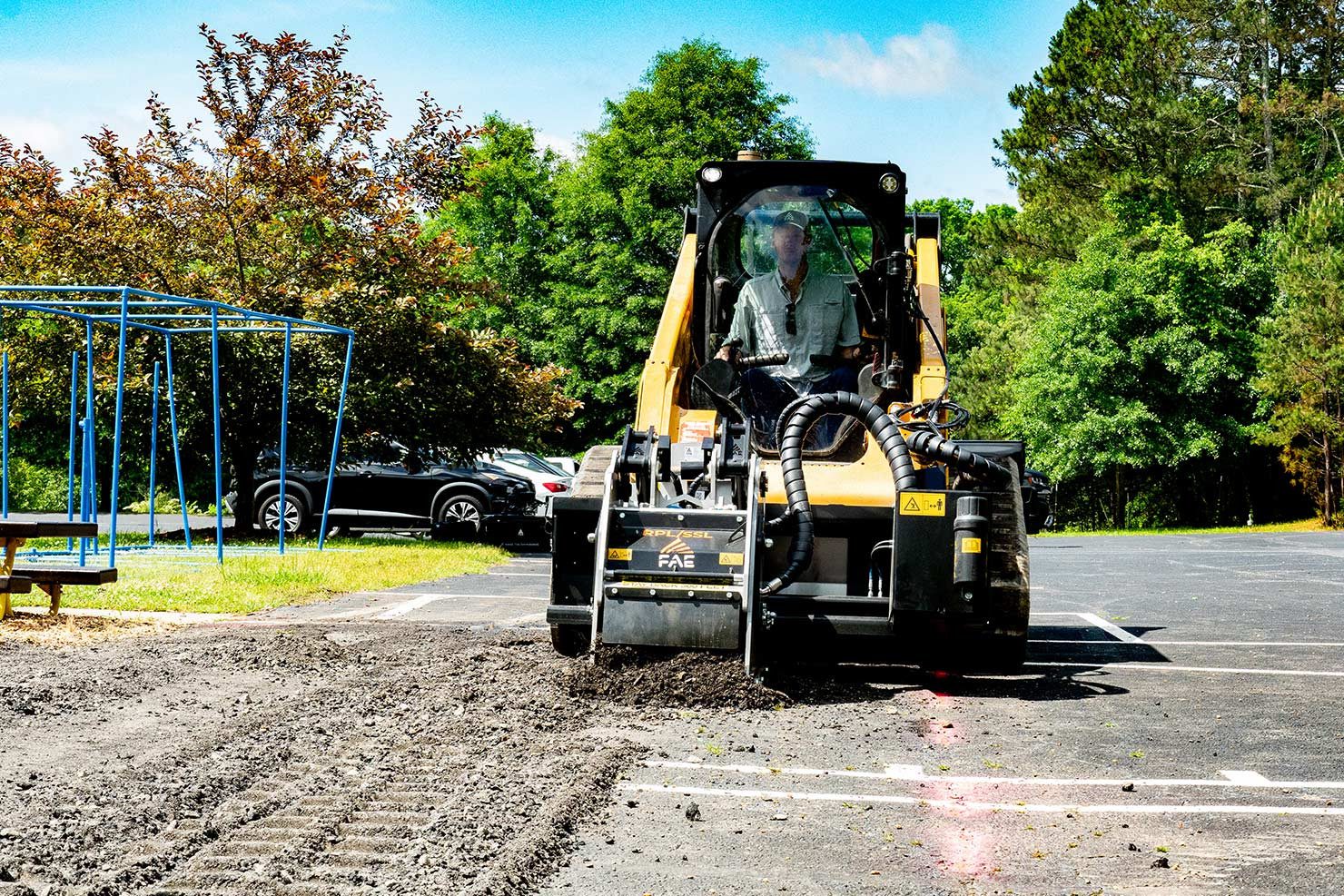

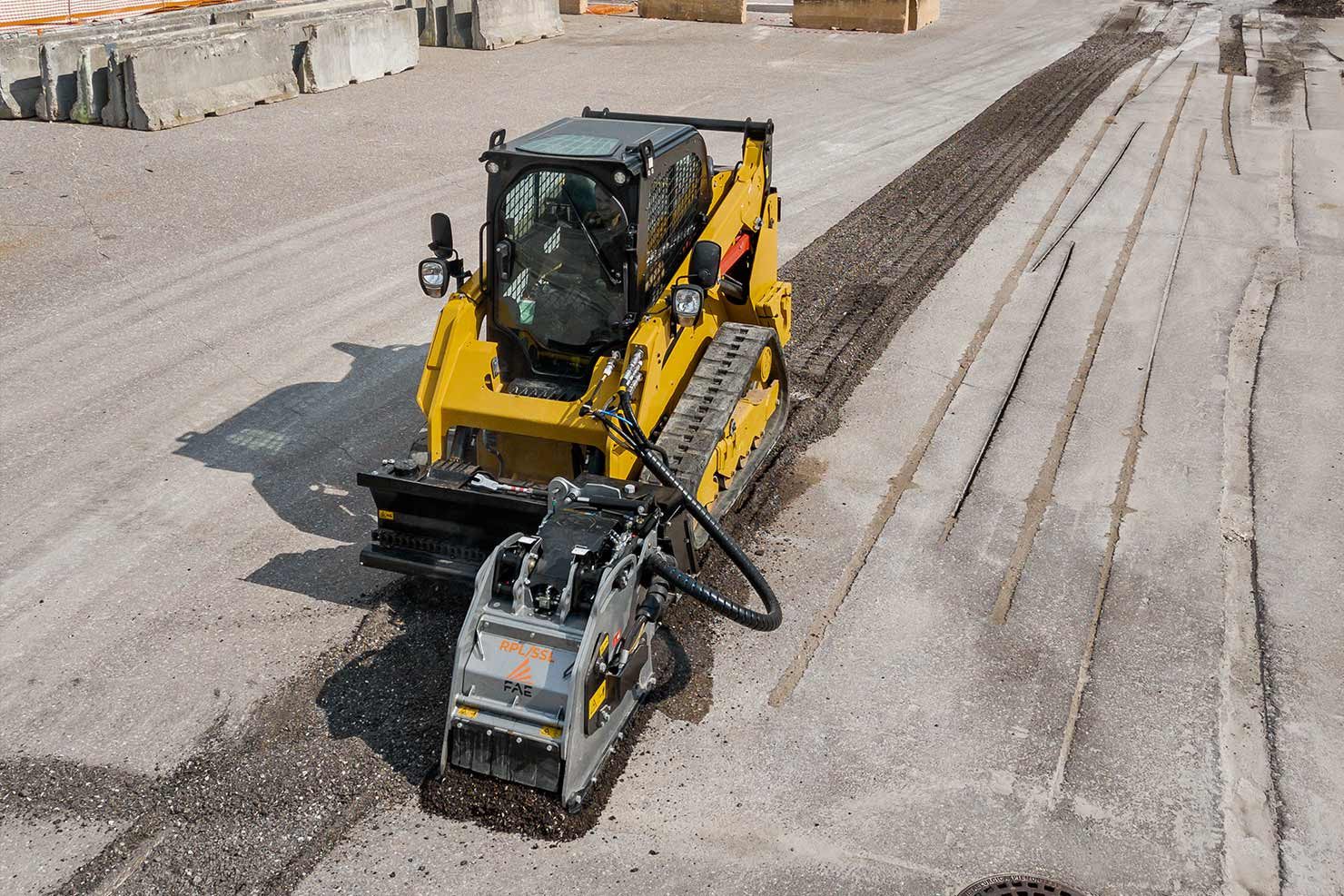

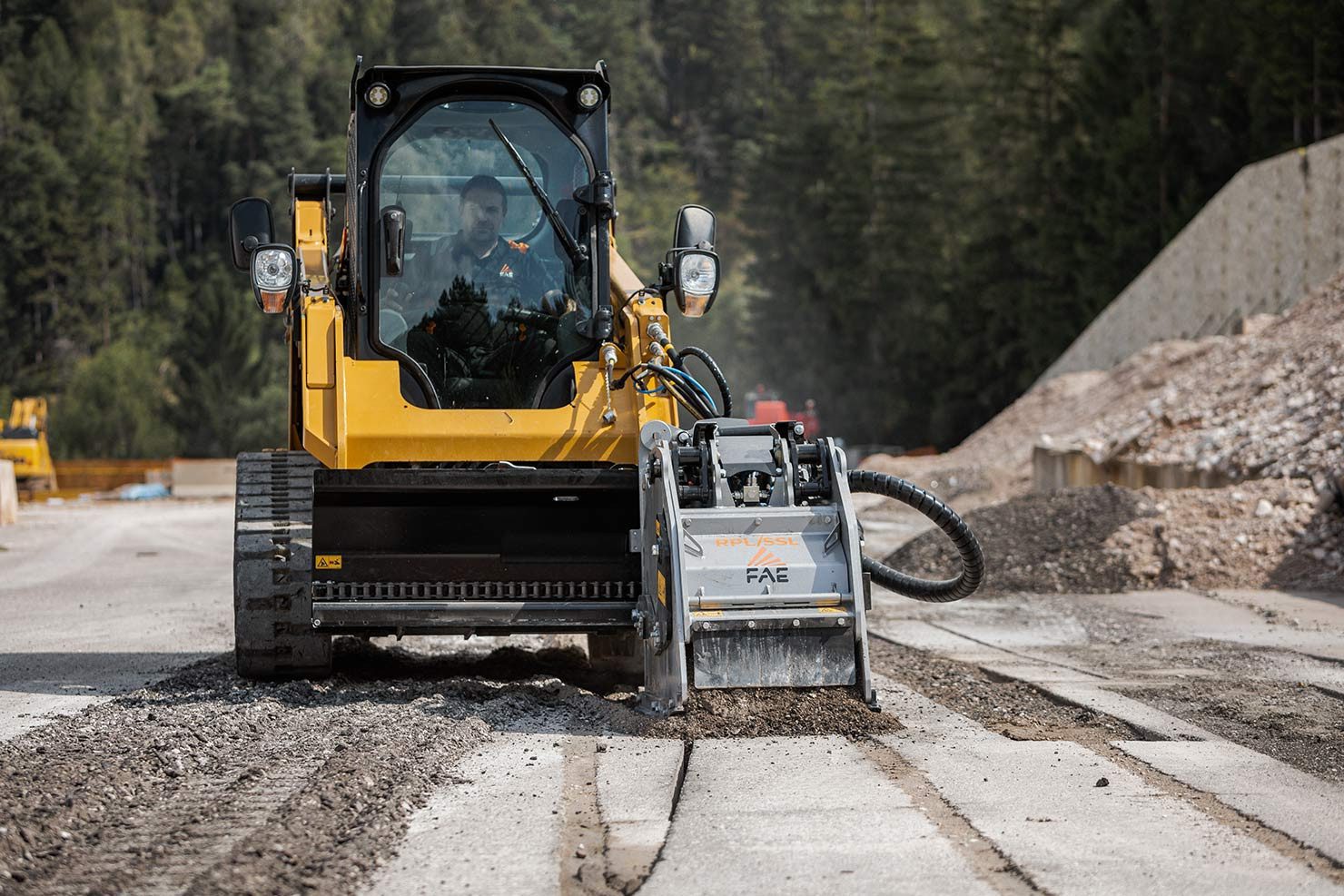

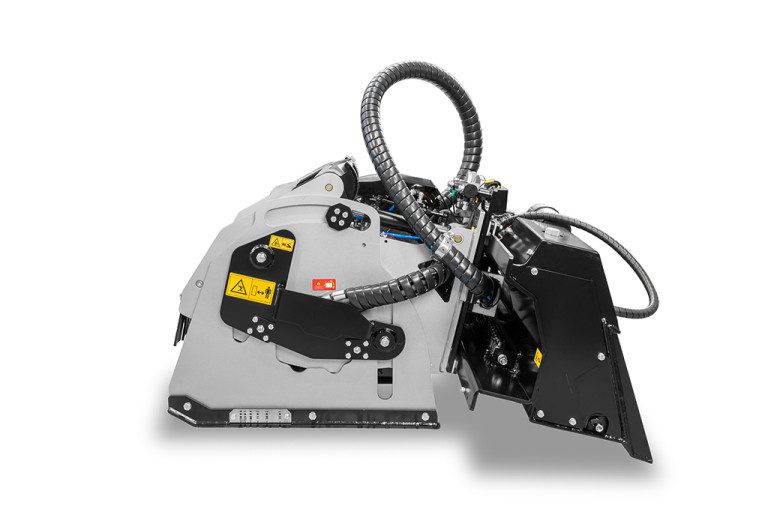

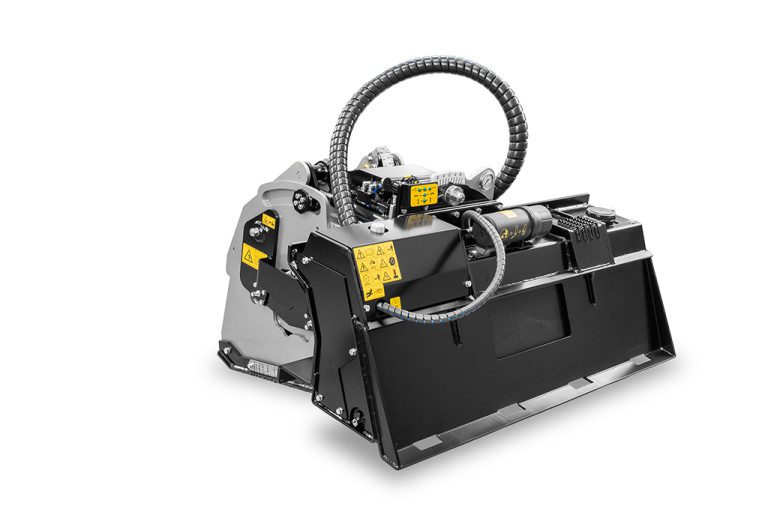

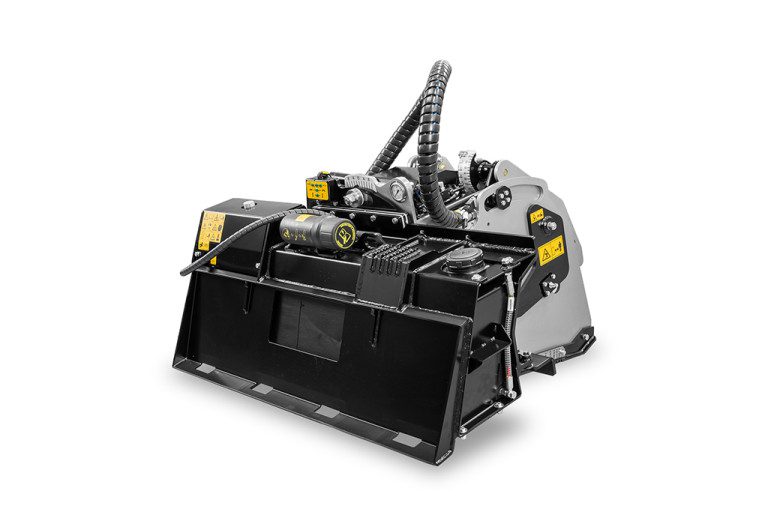

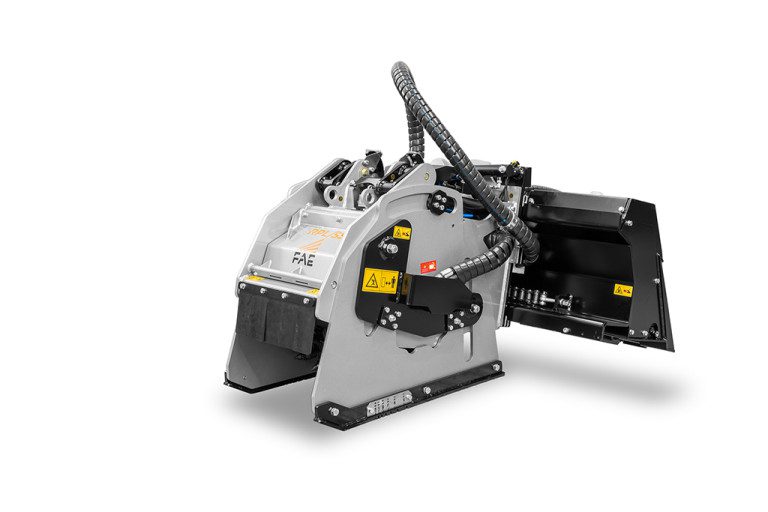

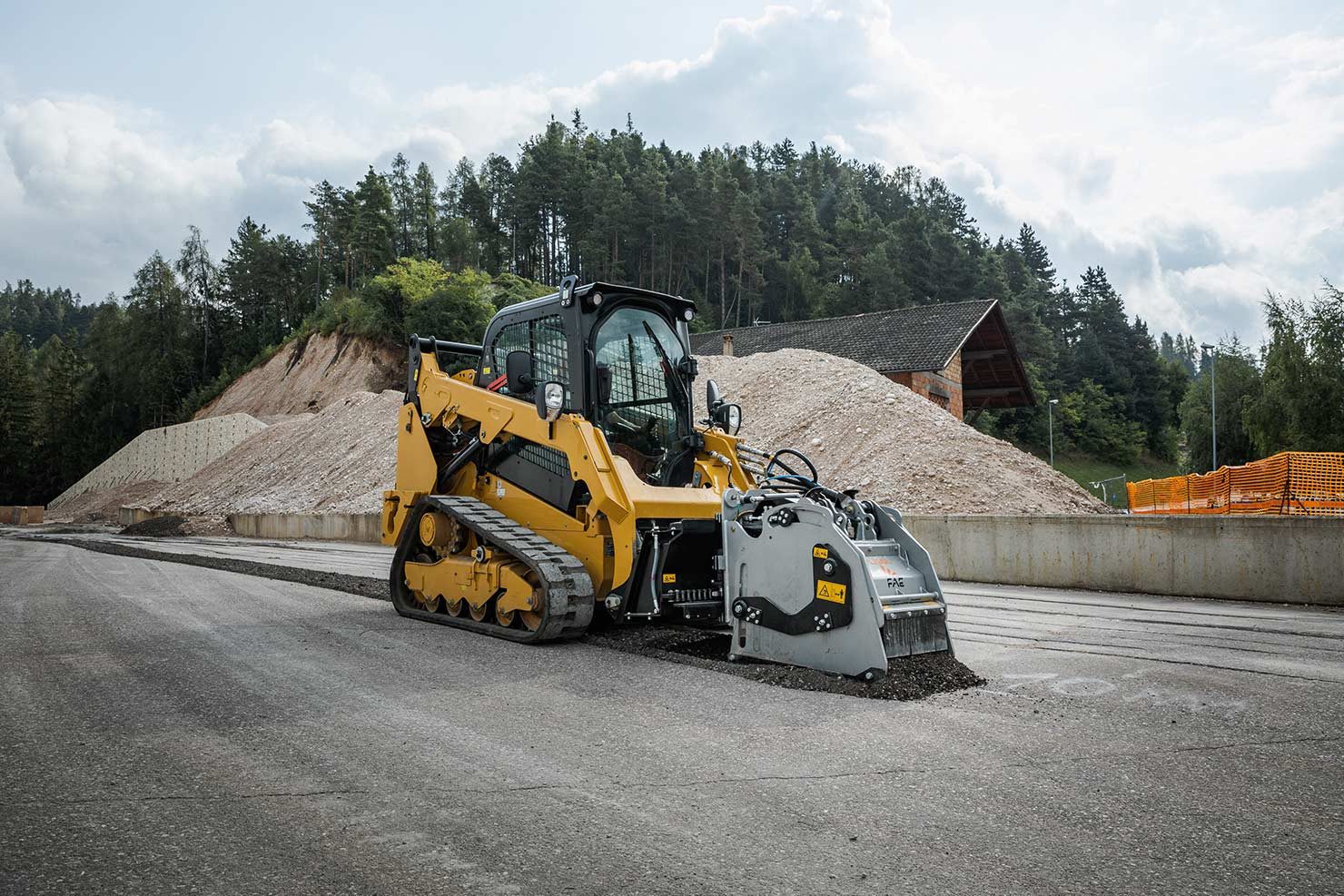

RPL/SSL. Fixed tooth road planer for skid steers up to 135 hp.

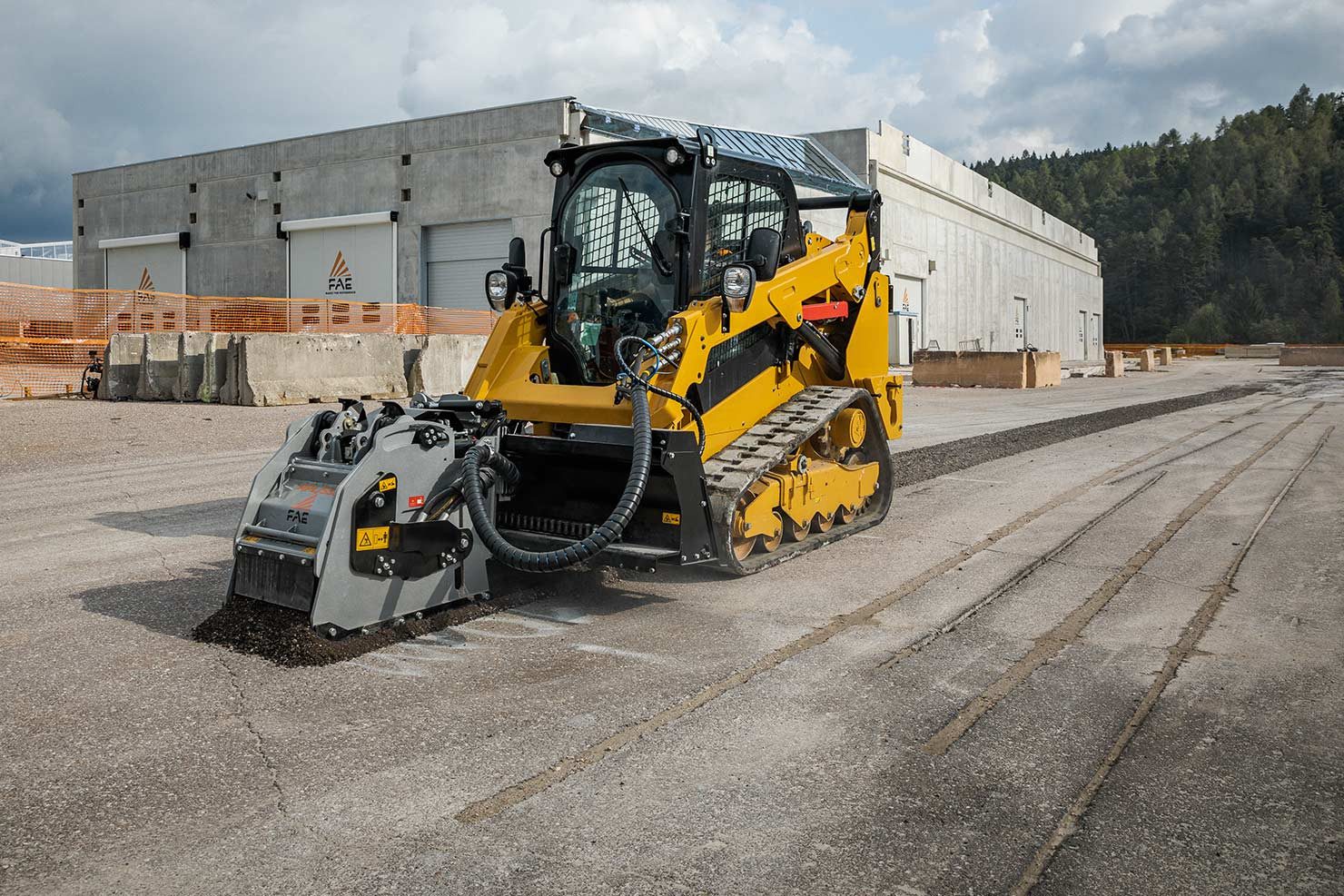

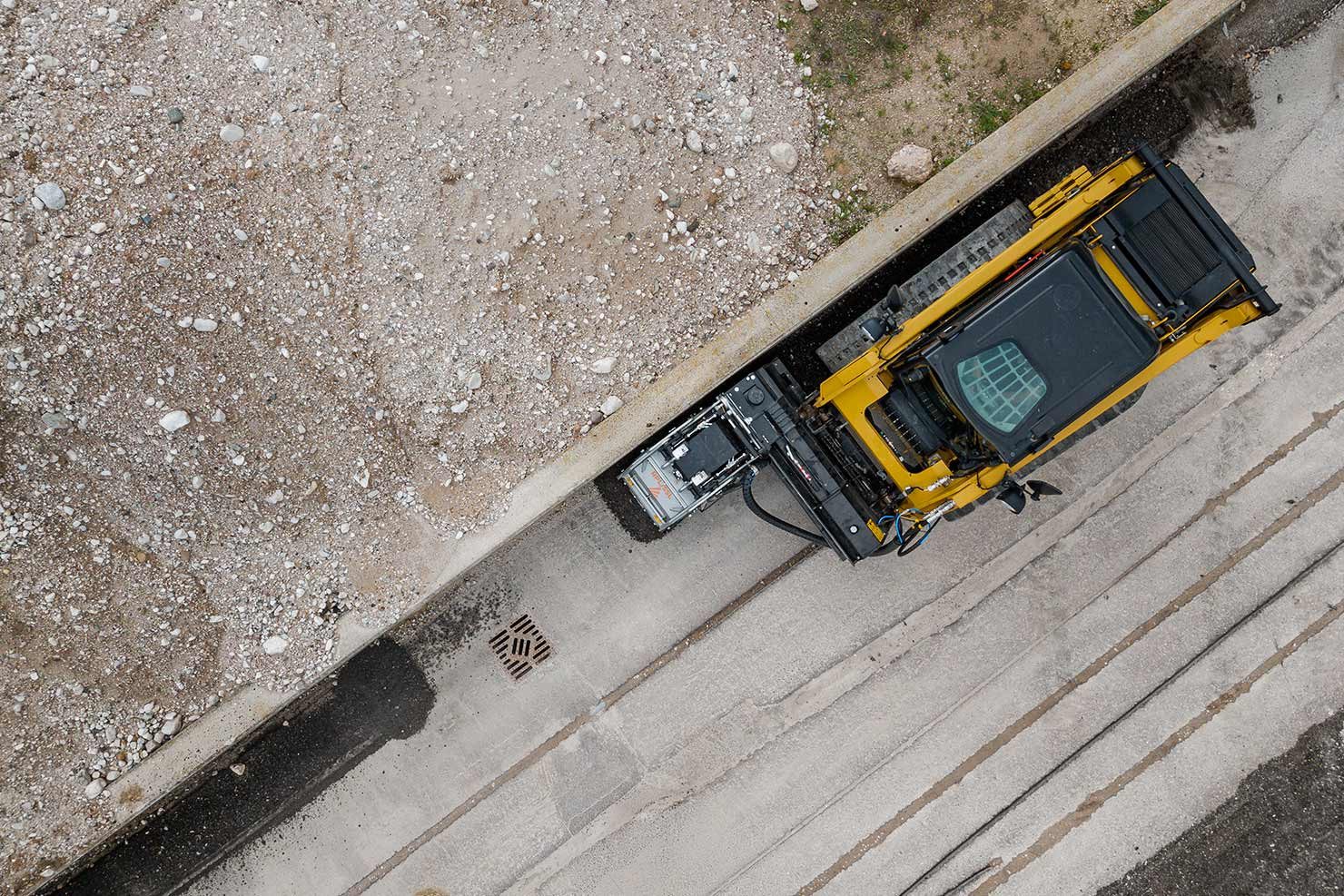

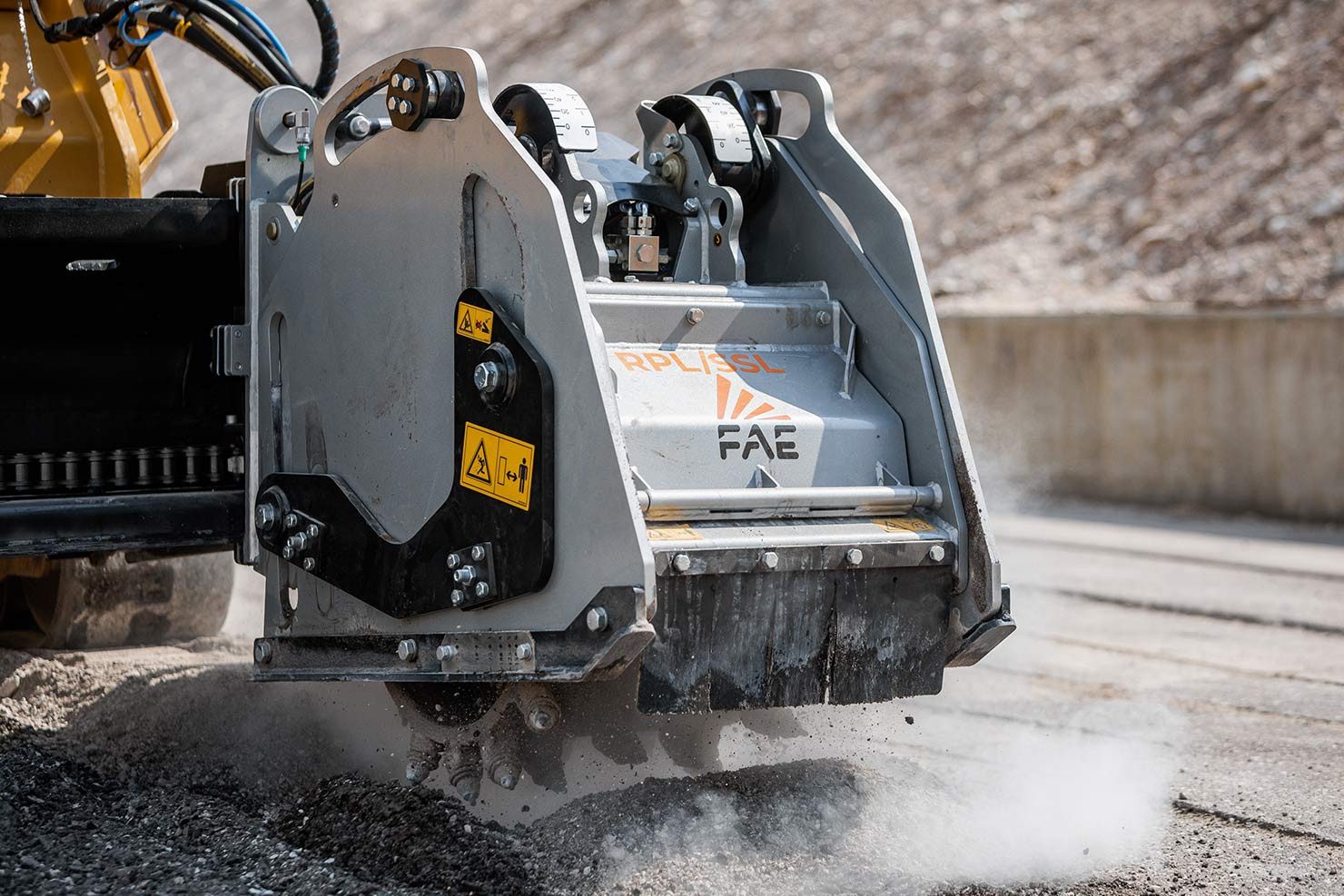

The RPL/SSL is a road planer for skid steers from 60 to 135 hp, capable of milling down to a depth of 7 in. The RPL/SSL is ideal for the preparation of roads before adding a new layer of asphalt or concrete when resurfacing, or to simplify excavation operations. Self-leveling skids and tilt ensure optimal results. The hydraulic drive system — which makes it possible to work right up to the wall on both the right and the left — as well as the practical cutting and depth indicators guarantee operational precision. The line is completed with teeth specifically designed for asphalt and concrete road surfaces.

Main Features

• Plug & play pairing
  with leading skid steers on the market

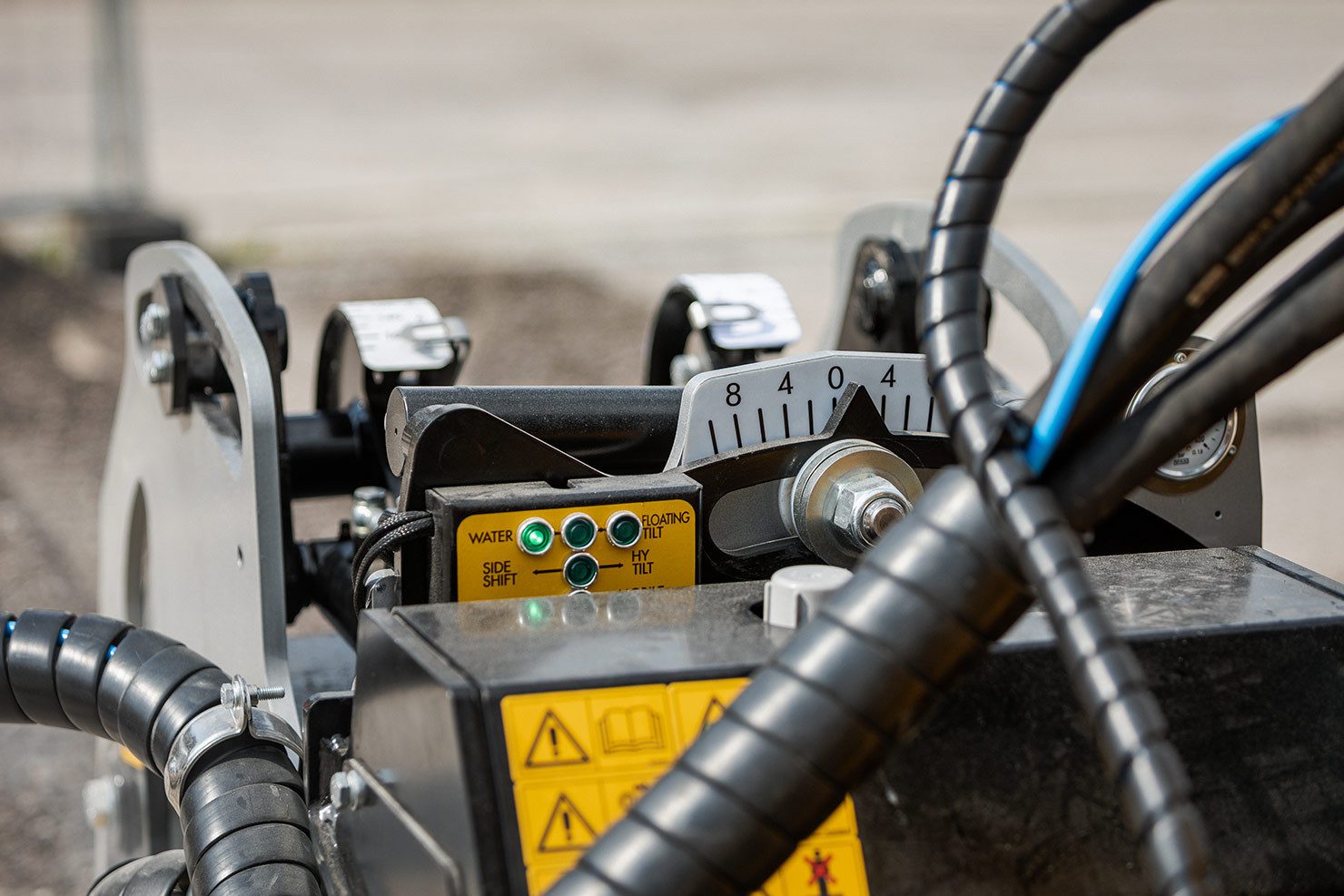

• Cutting and depth indicators
  for precise operation control
• Tilt
  for optimal results on uneven surfaces
• Hydraulic drive system
  for accurate positioning over the work area
• Support sleds with interchangeable Hardox® soles
  allow the machine to penetrate the ground better

Standard equipment

• Enclosed, dust-resistant machine body
• Working pressure control gauge
• Movable frame sides
• Rubber protection flap
• Hydraulic hoses
• 12V diverter valve
• Hydraulic block with safety and anticavitation valves
• Hydraulic side shifting
• Mechanical swinging and floating system
• Cutting indicator
• Direct-drive transmission
• Wear-resistant interchangeable Hardox® soles
• Support-skid-independent hydraulic control
• Hydraulically adjustable working depth

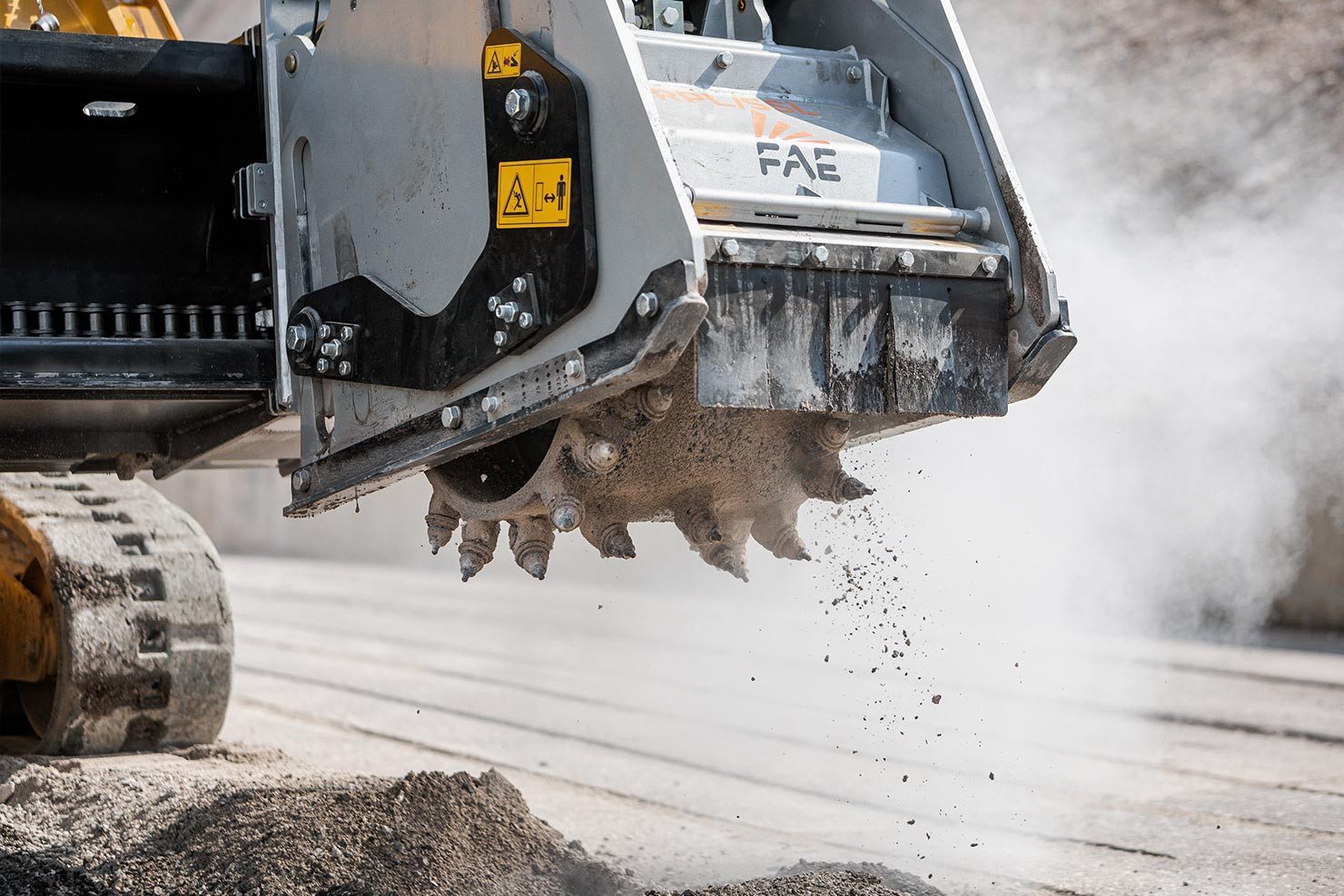

• Rotor with picks R/44/A
• 860 cc hydraulic piston motor (RPL/SSL-45, RPL/SSL-60)
• 940 cc hydraulic piston motor (RPL/SSL-75)
• 565 cc hydraulic piston motor (RPL/SSL/DT)
• Adaptor wiring
• SAE attachment frame with integrated water tank
