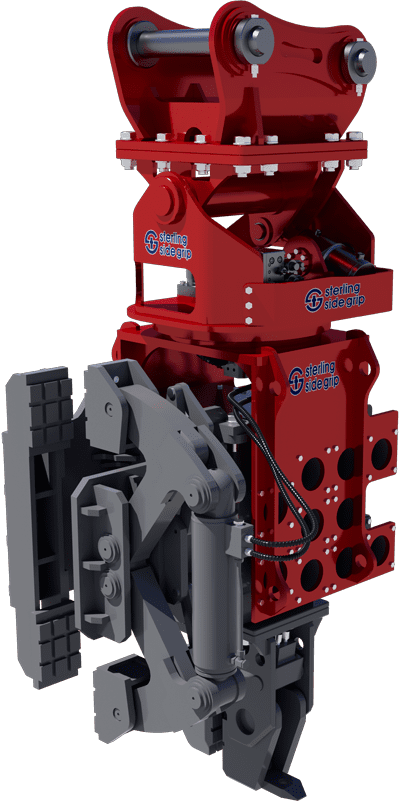

Sterling Sterling Side Grip-W Type for sale

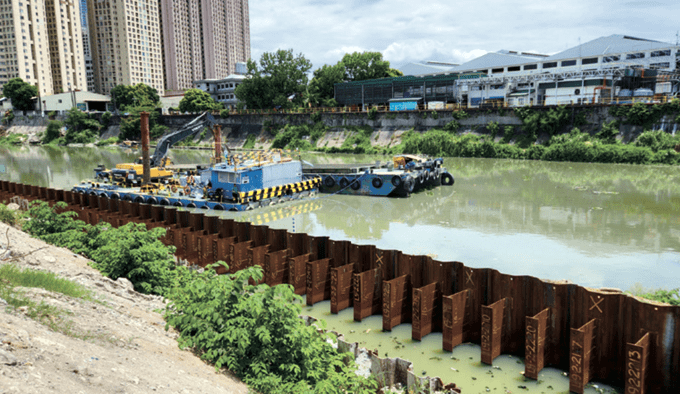

Available for a wide ranges of piles: Sheet piles, H beams, and I-H beams

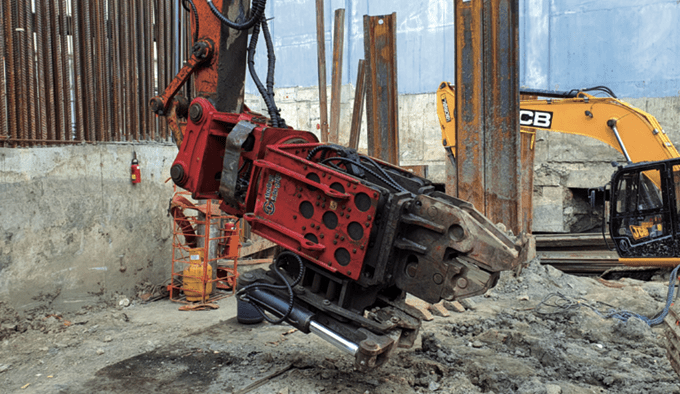

Versatile piling at headroom job site

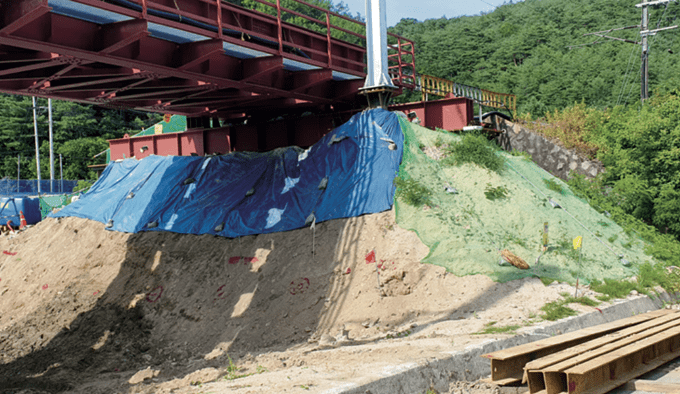

Versatile piling at a confined space job site
Precise and accurate side clamping: Balanced four pads allows firmly, precisely and accurately clamping
Quicker and more powerful: Faster penetration and extraction than other side grip pile drivers thanks to bigger and double eccentric weight
Low maintenance cost & easy maintenance: Concise structure of components
Rigid and durability: Balanced counter weighs and rigid rubber cushion

Model	Unit	SG25W	SG30W
Suitable Excavator	ton	17 ~ 26	22 ~ 36
Weight (Incl. Mounting Cap)	Kg/Lbs	2,620 / 5,776	2,800 / 6,173
Setting Pressure	bar / PSI	300 / 4,350
Oil Flow	lpm / gpm	150~170/40~45	180~220/48~58
Centrifugal force	kN / Tons	530/58	580/64
Frequency	RPM	3,300 ~ 3,600	2800 ~ 3600
Rotation	deg	360 ̊
Dimension (A x B x C)	mm / inch	1,165 x 1,210 x 2,600 / 45.8 x 47.6 x 102.3
Tilt degree	deg	±30
Bottom clamp open	mm / inch	65/2.5
Side clamp open	mm / inch	255/10

Pile Driving
