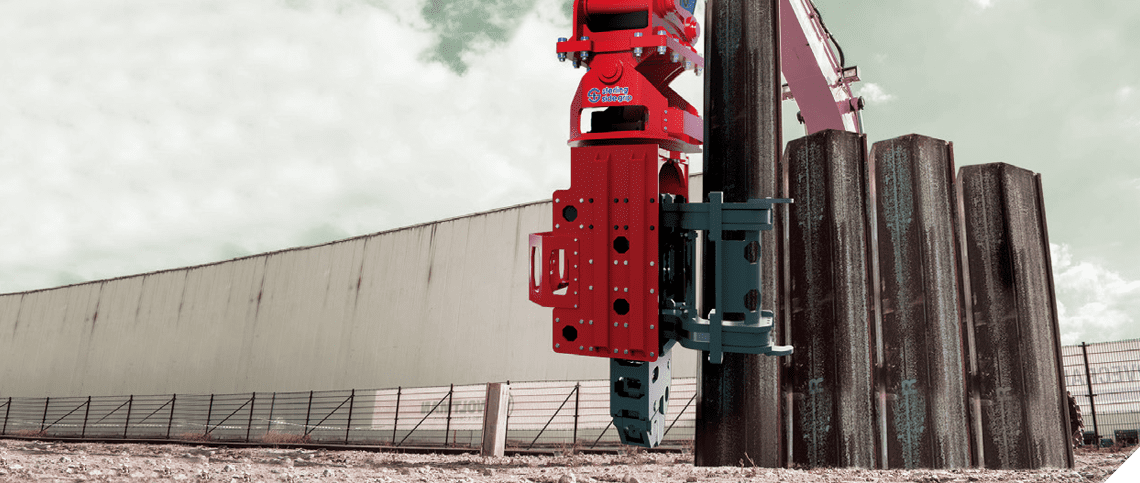

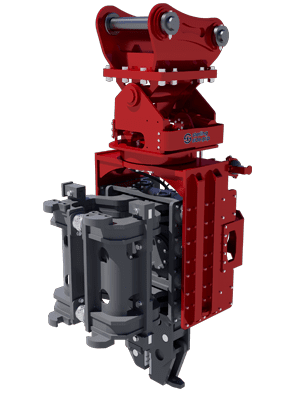

Side grip type excavator-mounted vibratory pile driver

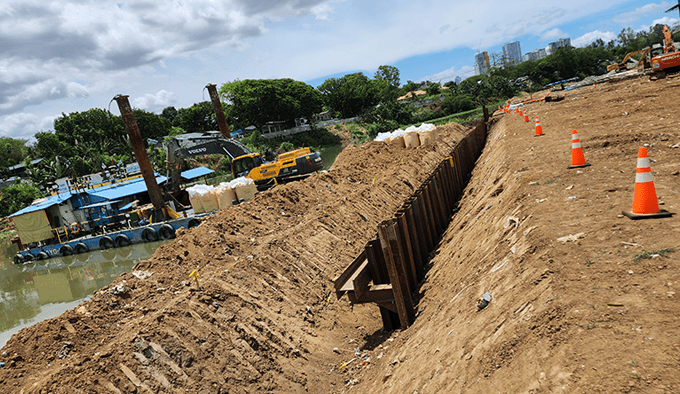

Available for a wide ranges of piles: Sheet piles, H beams, I-H beams, and round-piles

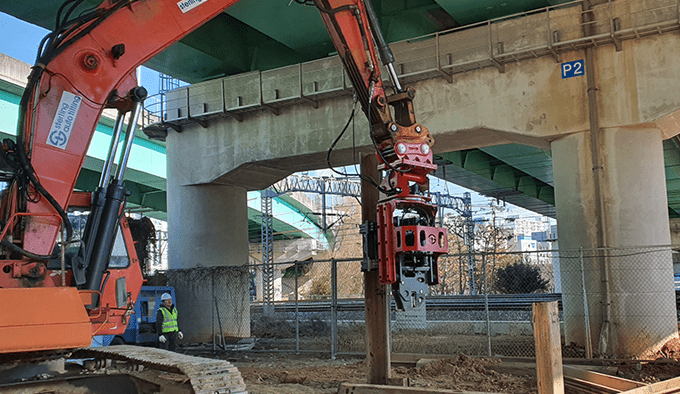

Versatile piling at headroom job site

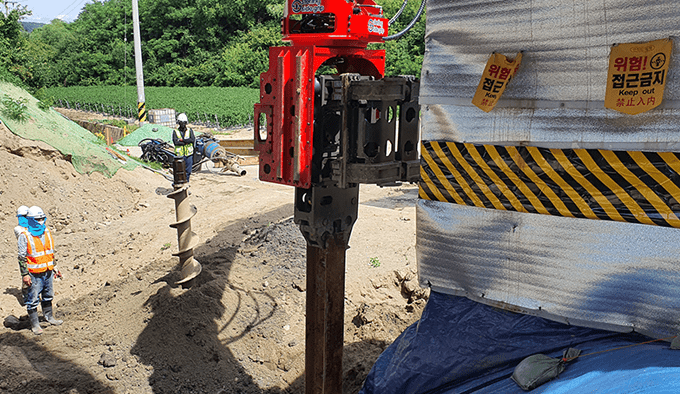

Versatile piling at a confined space job site
Precise and accurate side clamping: 360-degree Swivel rotatable grip pads enable precisely and accurately clamping
Quicker and more powerful: Faster penetration and extraction than other side grip pile drivers thanks to bigger and double eccentric weight
Low maintenance cost & easy maintenance: Concise structure of components
Rigid and durability: Balanced counter weighs and rigid rubber cushion

Model	Unit	SG25	SG30	SG40
Suitable Excavator	ton	20 ~ 26	28 ~ 36	36 ~ 50
Weight (Excl. Mounting Adapter)	Kg/Lbs	2,820 / 6,217	3,300 / 7,276	3,800 / 8,378
Setting Pressure	bar / PSI	300 / 4,350
Oil Flow	lpm / gpm	150~170/40~45	180~220/48~58	240~260/63~69
Centrifugal force	kN / Tons	530/58	580/64	940 / 103
Frequency	RPM	3,300 ~ 3,600	2,800 ~ 3,600	3,000 ~ 3,250
Rotation	deg	360
Dimension (A x B x C)	mm	1,510 x 1,039 x 2,765	1,534 x 1,039 x 2,886	1,750 x 1,039 x 3,070
Dimension (A x B x C)	inch	59.5 x 40.9 x 108.9	60.4 x 40.9 x 113.6	68.9 x 40.9 x 120.9
Tilting degree	deg	±30
Bottom Jaw open	mm / inch	65/2.6
Side clamp open	mm / inch	337 / 13.2
Min Pile Grip ø	mm / inch	76/3
Max Pile Grip ø	mm / inch	609/24

We’re here to help you pick out the best tool that suits your unique needs.
