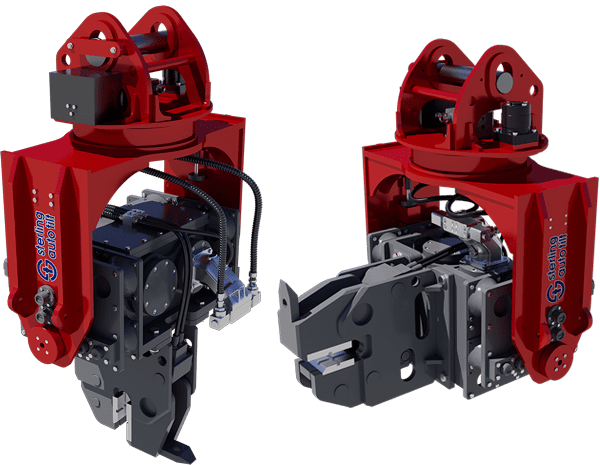

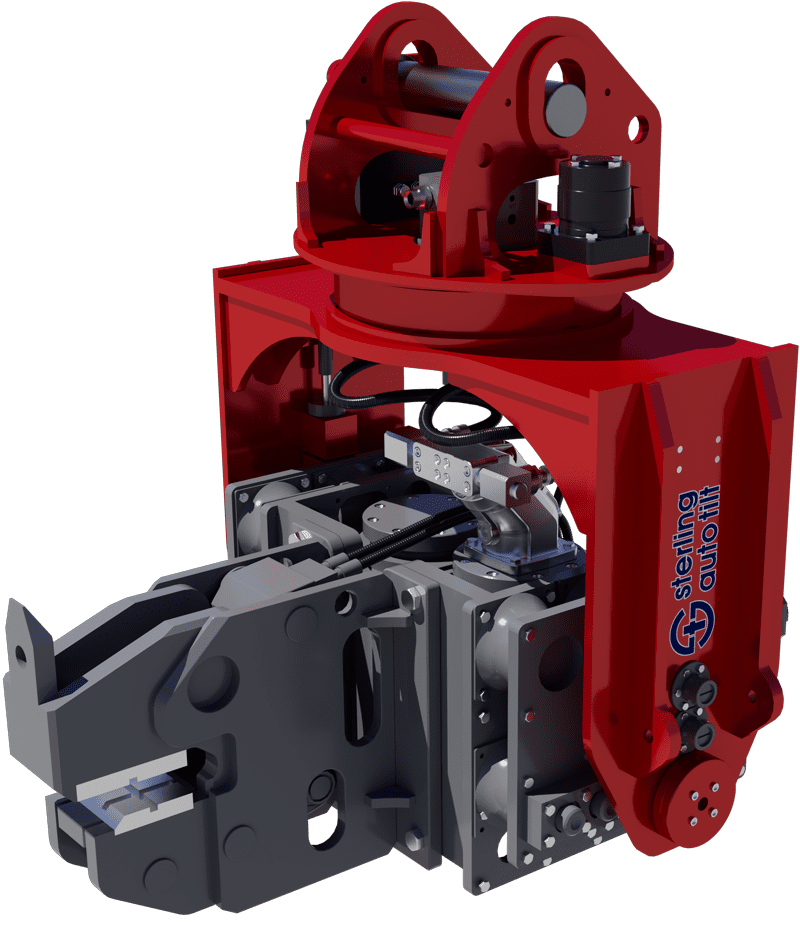

Sterling Auto Tilt Hammer for sale

More efficient and safter works: 90-degree tilt / 360. hydraulic rotation function enable more efficient and safer works
“Auto Hold” function on g0-degree tilt position
Low maintenance cost & Easy maintenance: Compact design with no failure-prone cylinders of tilt function
Rigid and durability: Durable structure and rigid rubber cushion
Low maintenance cost & easy maintenance: Concise structure of components
Easy installation & operation: Concise operation electric kits

Model	Unit	SH25 Tilt	SH30 Tilt	SH40 Tilt
Excavator	ton	20~26	28~36	36~50
Hammer Weight	Kg/Lbs	1620 / 3,571	1,910 / 4,211	2,250 / 4,960
Extension boom weight	Kg/Lbs	520 / 1,146	610 / 1,345	700 / 1,543
Setting Pressure	bar / PSI	300 / 4,350
Oil Flow	lpm / gpm	150~170/40~45	180~220/48~58	240~260/63~69
Centrifugal Force	kN / Tons	530/58	580/64	940 / 103
Frequency	RPM	3,300 ~ 3,600	2,800 ~ 3,600	3,000 ~ 3,250
Rotation	deg	360 ̊
Tilt degree	deg	90 ̊
Jaw open	mm / inch	65/2.6
Dimension (A x B x C)	mm	1,326 x 711 x 2,089	1,326 x 805 x 2,068	1,435 x 900 x 2,180
Dimension (A x B x C)	inch	52.2 x 27.9 x 82.2	52.2 x 31.7 x 81.4	56.5 x 35.4 x 85.8

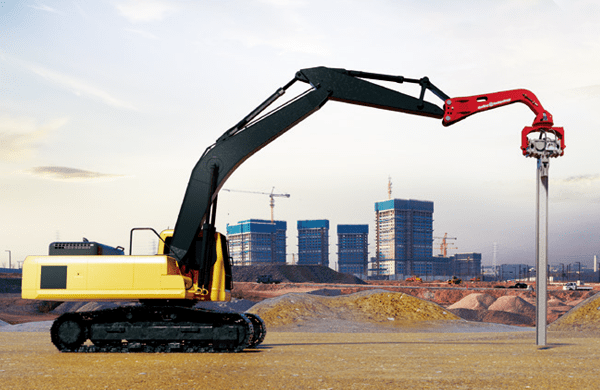

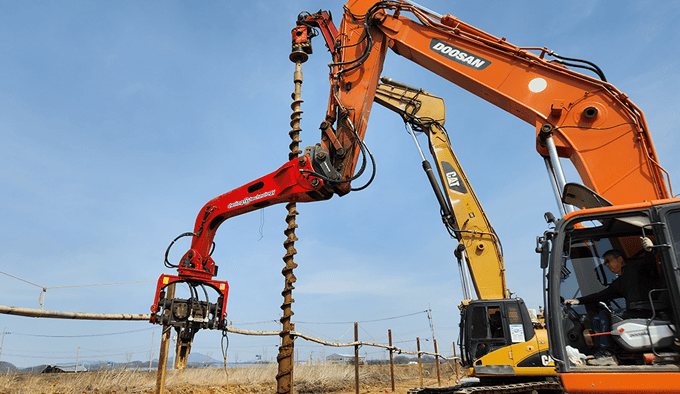

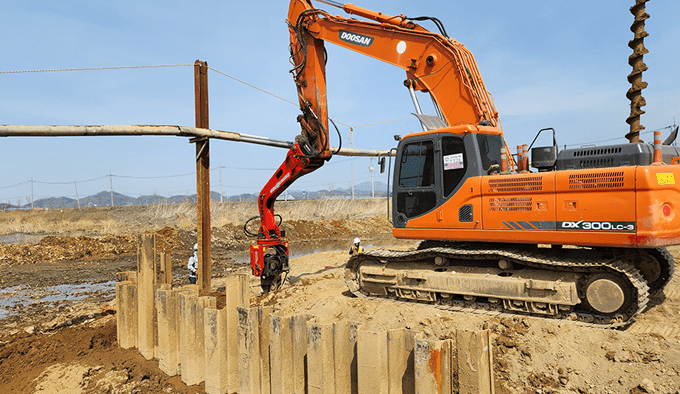

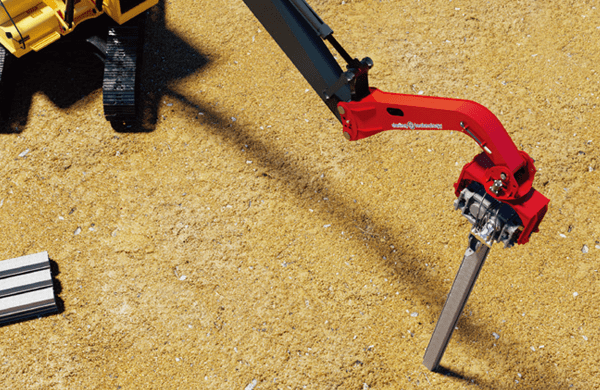

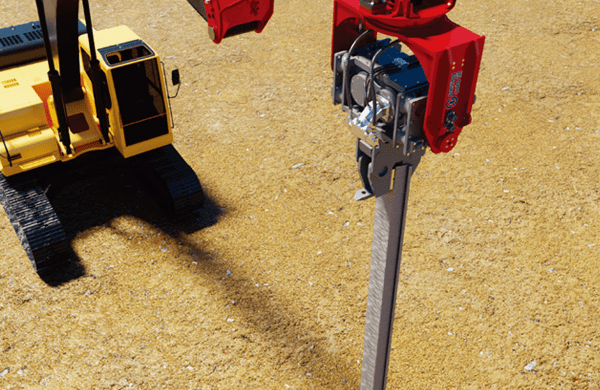

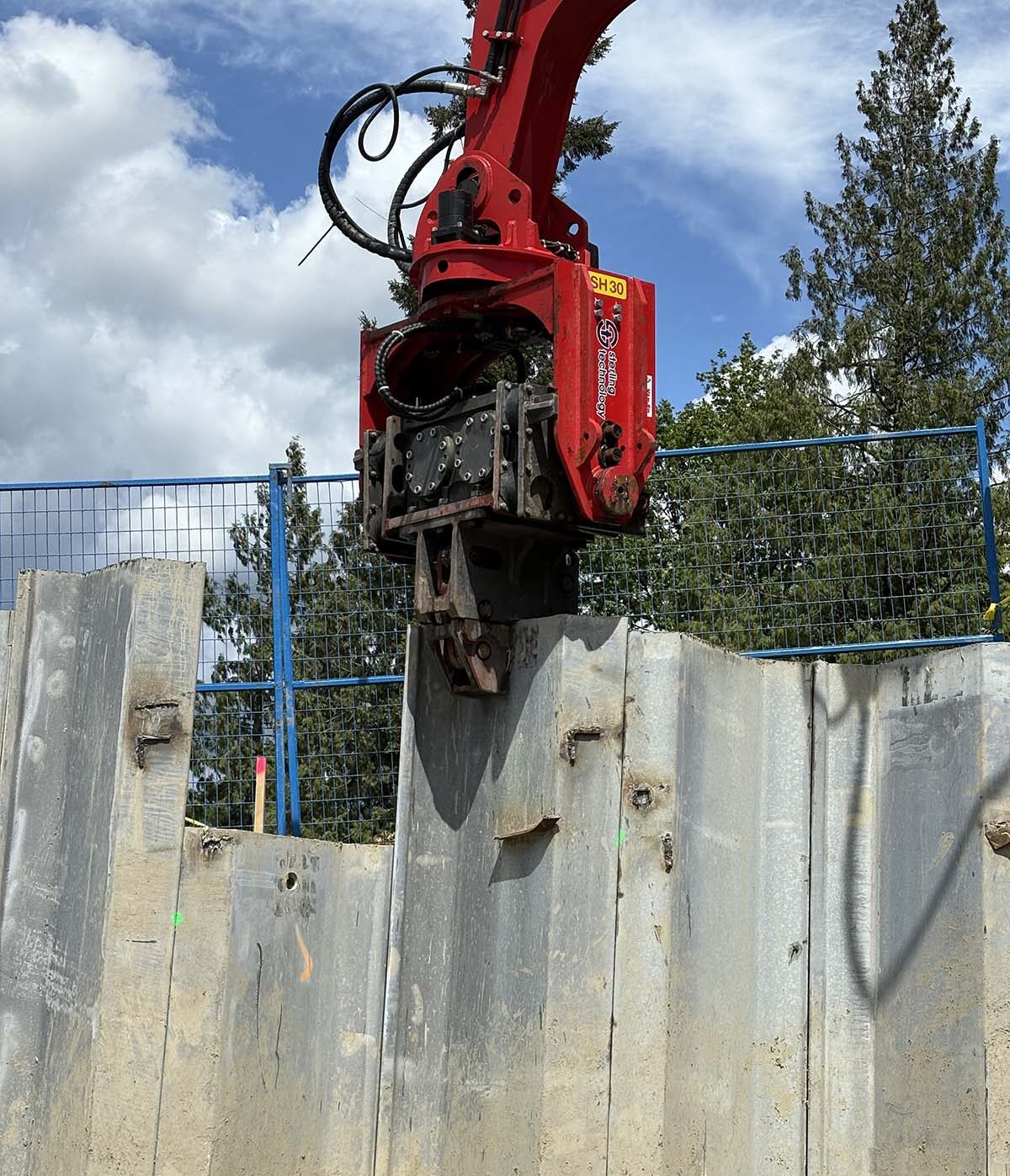

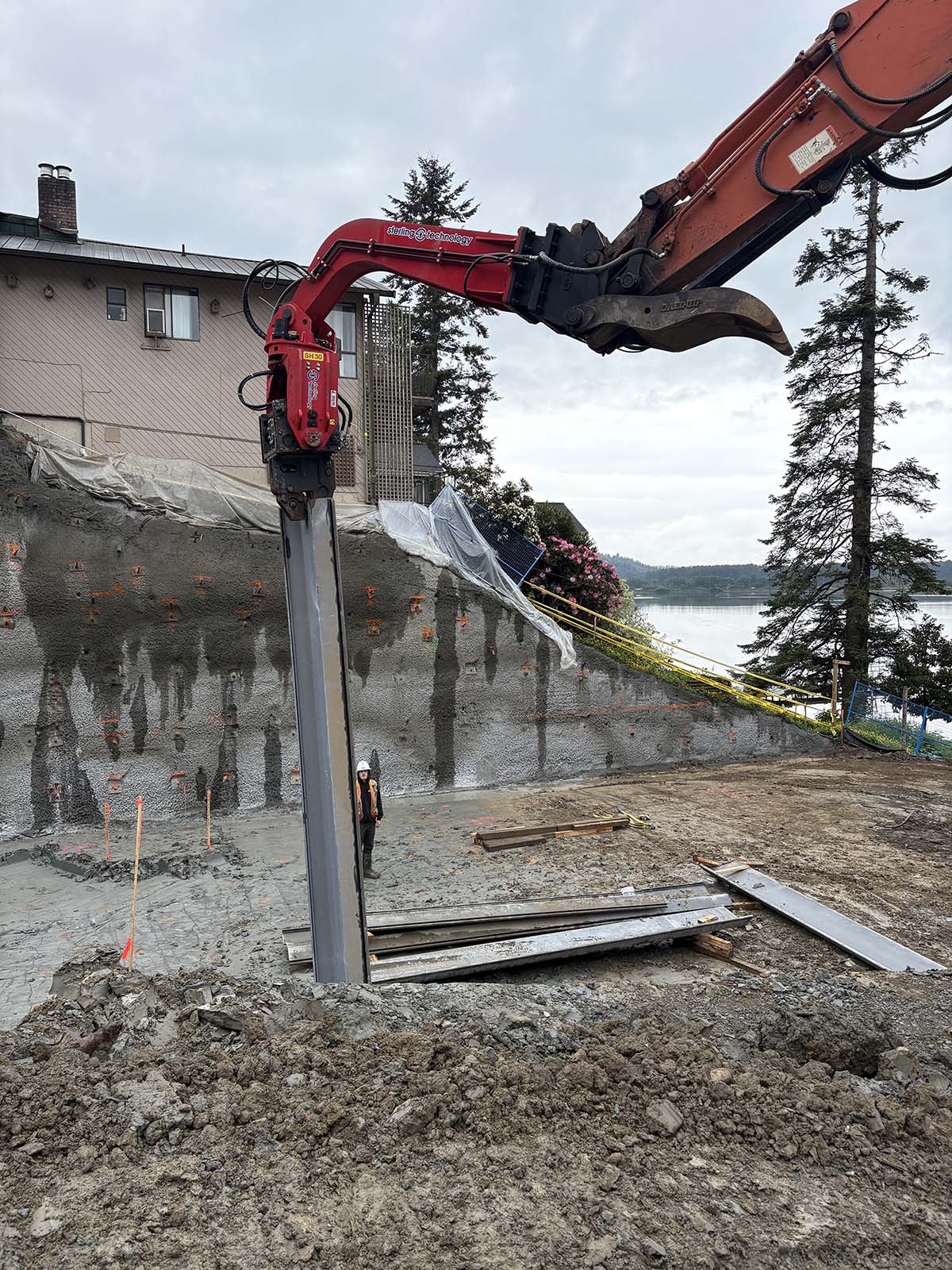

Pile Driving
