Key Specs
-
Excavator Class
2–40 tons
-
Flow Rate
5–31 GPM
-
Max Operating Pressure
4,600 psi

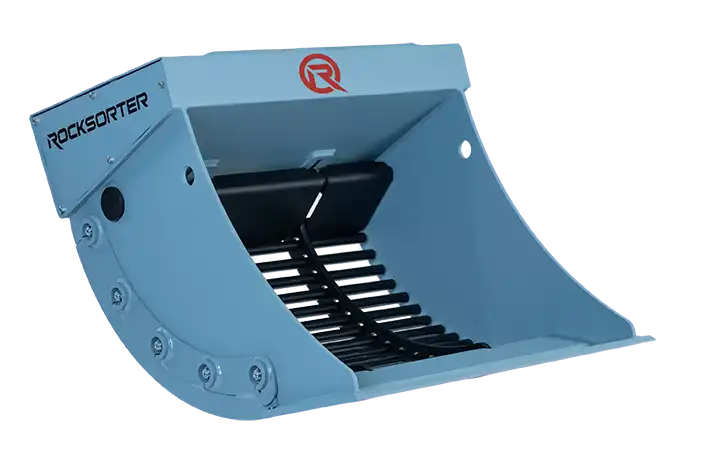

Product Overview
Powerful, Precise, and Built to Last

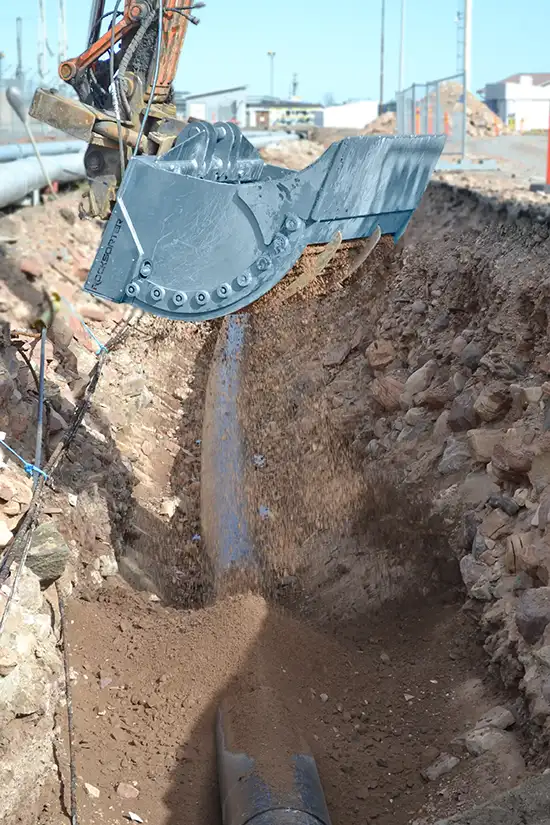

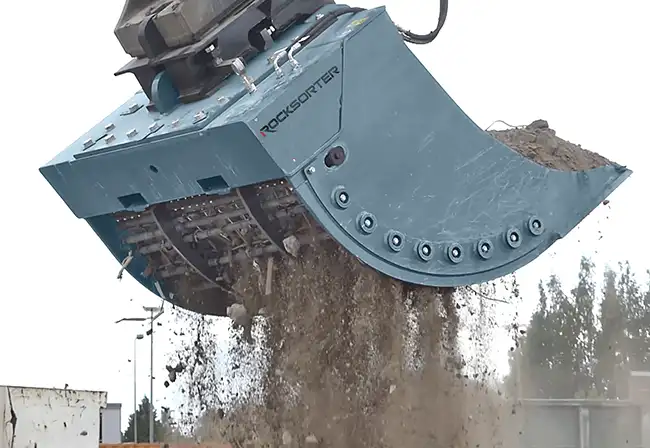

The Rocksorter sorting bucket is the ultimate solution for fast, efficient material separation in demanding construction and demolition environments. Engineered for durability and minimal maintenance, the Rocksorter delivers consistent performance across a wide range of applications—from laying forest paths to installing underground cables and pipes.
Superior Screening with Patented Eccentric Motion
At the heart of the Rocksorter is a patented eccentric motion system that rapidly and effectively separates coarse and fine materials.
Fast Setup, Flexible Results
The Rocksorter’s adjustable screen size allows you to switch between materials in just minutes—no complex tools or processes required. Its simple design ensures effective soil screening, helping reduce costs and speed up site prep.
Whether you’re in excavation, roadwork, utility installation, or demolition, the Rocksorter sorting bucket is your go-to attachment for maximizing efficiency and minimizing hassle.
Productivity
- Fast and efficient separation of different material sizes
- Greatly boosts on-site productivity and streamlines workflows
Durability
- Built tough for the rigors of construction and recycling work
- Simple and reliable design ensures long service life
Cost-Effective
- Lower operating costs than traditional star screen buckets
- Easy maintenance and quick servicing minimize downtime
Innovation
Efficient screening and sorting using patented lifting technology
Productivity
Rapid separation of different material sizes, significantly increasing productivity.
Durability
Long-lasting and easy to use, ideal for construction and recycling purposes.
Simple design
Directly driven camshaft moves bars on the bottom of the shovel.
Low maintenance
No rotating shafts to wear out, minimizes repairs and downtime.
Quick adjustments
Screen size quickly adjustable from 25 mm. Standard 50 mm
Cost-effective
Low operating costs compared to star screen buckets.
Versatile
Works with excavators and wheel loaders, compatible with tiltrotators thanks to low oil requirement and stroke-based screening.

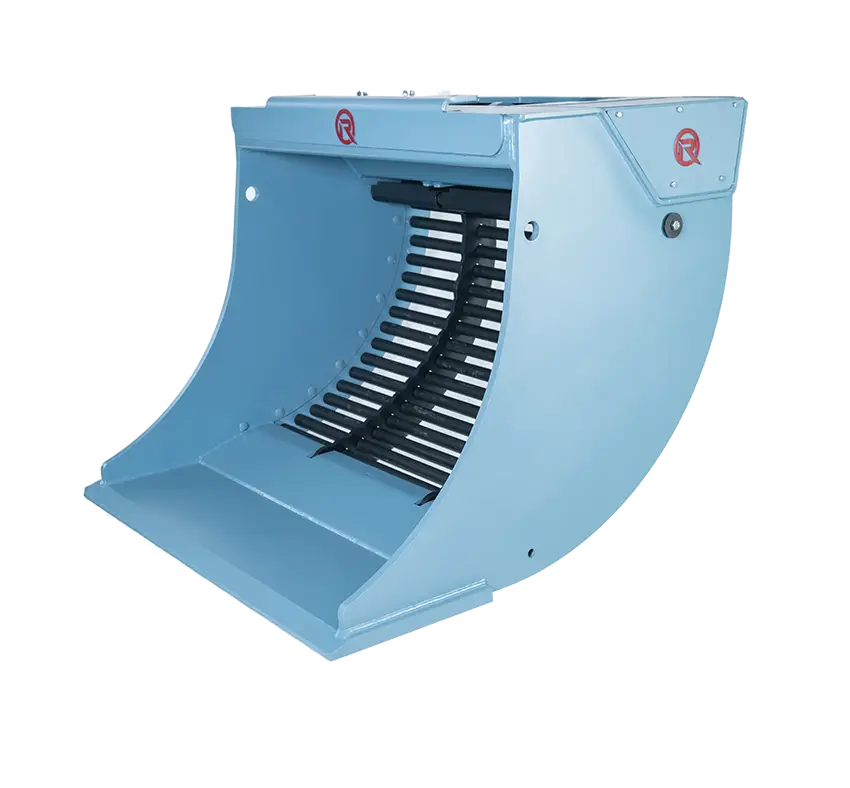

| Model | V3 | V5 | V8 | V10 | V12 | V15 | V20 | V30 | V35 |
| Excavator Class (tons) | 2–4 | 3–6 | 5–10 | 7–12 | 12–15 | 13–18 | 15–25 | 25–35 | 30–40 |
| Flow Rate (GPM) | 5–15 | 5–15 | 10–20 | 10–20 | 10–20 | 10–20 | 10–20 | 20–31 | 20–31 |
| Flow Rate (l/min) | 20–60 | 20–60 | 40–80 | 40–80 | 40–80 | 40–80 | 40–80 | 80–120 | 80–120 |
| Operating Pressure Max (psi) | 4600 | 4600 | 4600 | 4600 | 4600 | 4600 | 4600 | 4600 | 4600 |
| Weight (lbs) | 375 | 595 | 1080 | 1430 | 1895 | 2200 | 3175 | 3880 | 4080 |
| Weight (kg) | 170 | 270 | 490 | 650 | 860 | 1000 | 1440 | 1760 | 1850 |
| Load Volume (cu yd) | 0.10 | 0.27 | 0.50 | 0.55 | 0.81 | 0.95 | 1.57 | 1.57 | 1.83 |
| Width (inches) | 28 | 31.5 | 39 | 47 | 47 | 52 | 59 | 59 | 63 |
| Output Size Range | < 2 in | < 2 in | < 2 in | < 2 in | < 2 in | < 2 in | < 2 in | < 2 in | < 2 in |
