HLA · Blades
HLA Angel Blade 4000 Series
Have a question? Call 604-888-9020 or send a contact request. Financing may be available: details.
At a glance
- Brand
- HLA
- Category
- Blades
- Fits
- Wheel Loader
Product Overview
Max Operating Weight: 25,000 lbs.

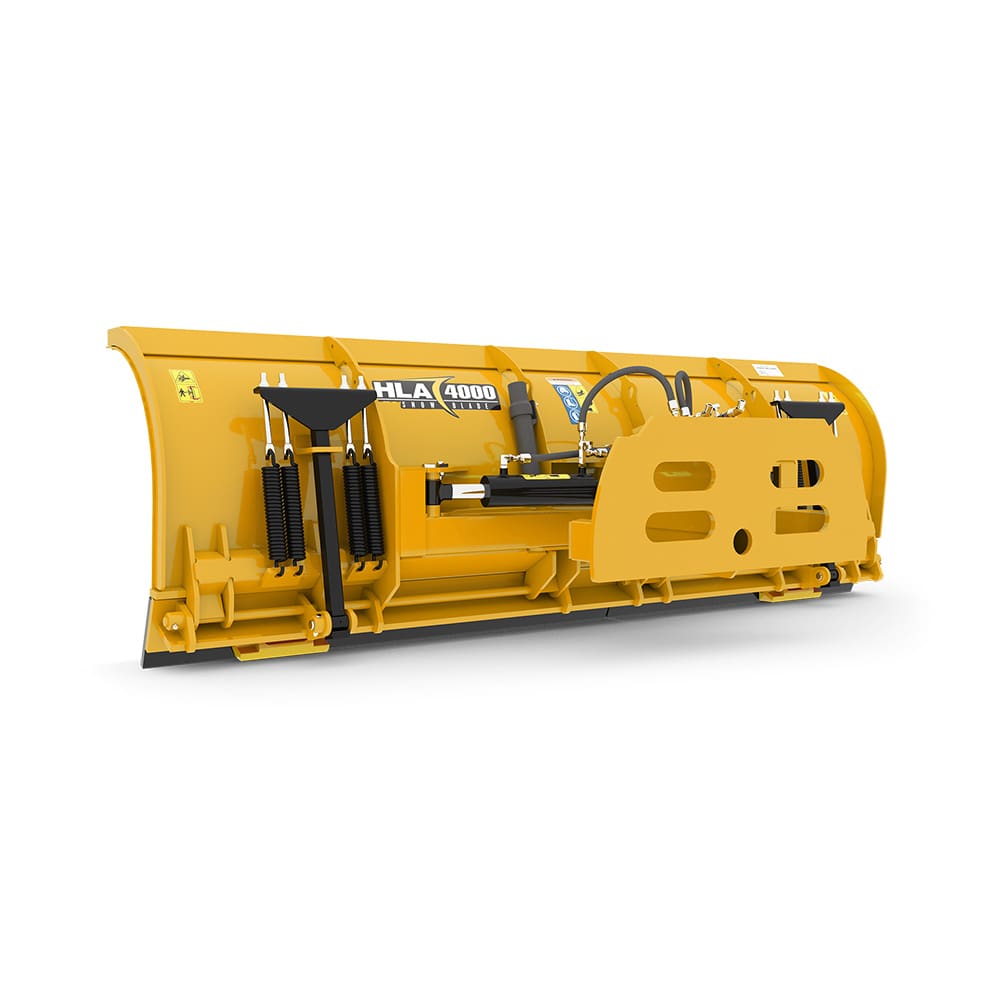

The HLA SnowBlade puts you in the driver seat when it comes to clearing snow. The SnowBlade robust mouldboard has a precision engineered curve construction that folds and rolls the snow, limiting unwanted sticking, side tracking, and spill over. Equipped with a spring-trip feature, the cutting edge trips back if the blade hits a hidden object, limiting any damage so you can continue clearing. With other features such as the crossover relief valve, lateral float, and replaceable and reversible cutting edge, the HLA SnowBlade gets the job done right, every time.
- 2 Year Warranty – Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
- 35° Angle with Crossover Relief Valve Protection – Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
- Lateral Float – Allows blade to follow ground contours for better clearing performance.
- Mouldboard Profile – Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.
- Replaceable, Reversible Cutting Edge – Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
- Cast Highway Skid Shoes – Standard on 4000, 5000, 6000 snow blades without Edge Flex. Cast high tensile long wear skid shoes provide excellent longevity and performance suited for heavy duty clearing on concrete or asphalt.
- Spring Trip Cutting Edge – Allows cutting edge to trip back if struck by hidden object limiting damage.
| Part Number | Cutting Edge | Approx. Weight (lbs) | Length (in.) | Overall Road Width (Angled) (in.) | Snow Clearing Width (Angled) (in.) | Mouldboard Height | Max Operating Weight (lbs) |
|---|---|---|---|---|---|---|---|
| SB400009 | Standard | 1,665 | 108 | 100 | 88.5 | 34″ | 25,000 |
| SB4000EF209 | Edge Flex | 1,660 | 108 | 100 | 88.5 | 34″ | 25,000 |
| SB400010 | Standard | 1,765 | 120 | 110 | 98.5 | 34″ | 25,000 |
| SB4000EF210 | Edge Flex | 1,770 | 120 | 110 | 98.5 | 34″ | 25,000 |
| SB400012 | Standard | 1,955 | 144 | 130 | 118 | 34″ | 25,000 |
| SB4000EF212 | Edge Flex | 1,980 | 144 | 130 | 118 | 34″ | 25,000 |
| SB400014 | Standard | 2,235 | 168 | 150 | 138 | 34″ | 25,000 |
| SB4000EF214 | Edge Flex | 2,285 | 168 | 150 | 138 | 34″ | 25,000 |
- Rubber Cutting Edge – Allows blade to trip back if struck by hidden object limiting damage. Standard on SB4000R models.
- Spill Guard – Available on all SnowWing models and the 4000, 4000, 5000, & 6000 series SnowBlades.
- Carbide Cutting Edges – Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
- Floating Blade Hinge – This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the blade forward.
- Snowblade Marker – Add this to your blade for better visibility and blade position awareness.
- Curb Runner – Protects cutting edge from potential wear from rubbing against curbs etc.
- AR400 Large Pad Skid Shoe – Large pad style skid shoes for better floatation on soft surfaces
- Edge Flex Models – Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
