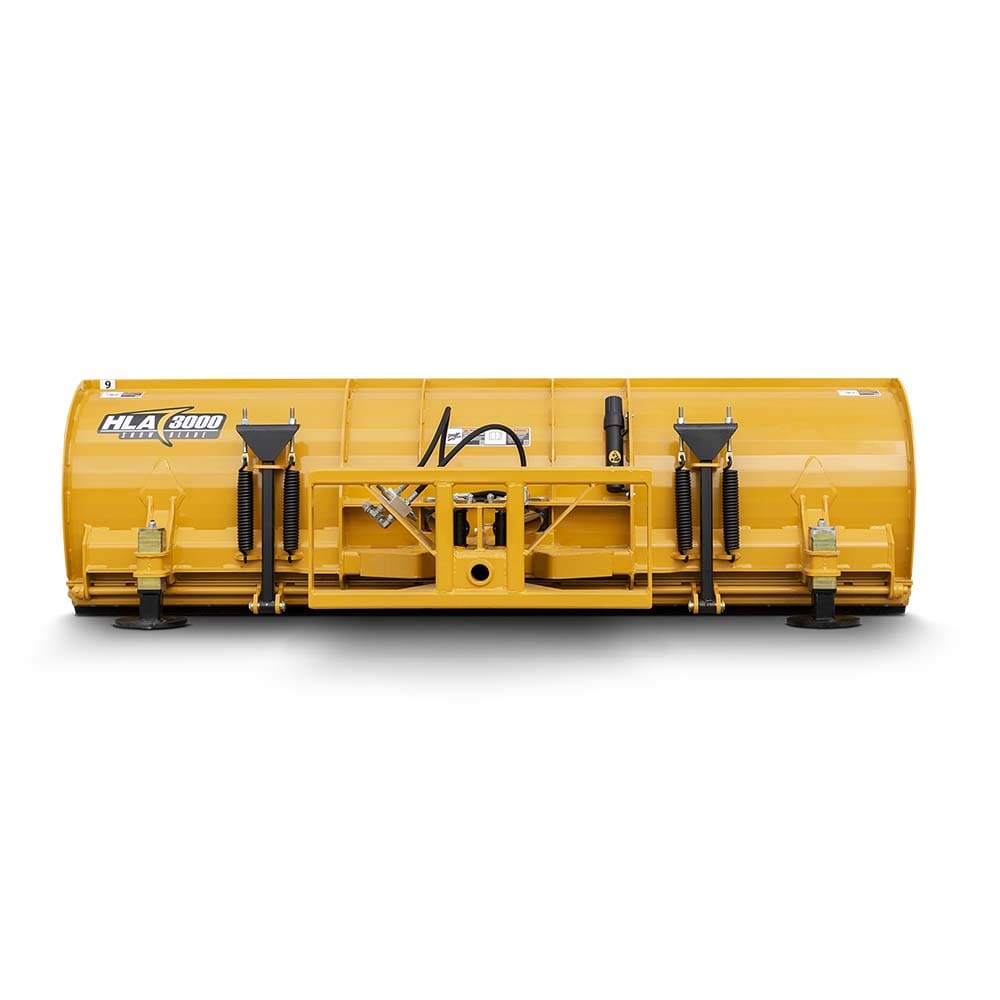

HLA Angel Blade 3000 Series

ASK A QUESTION Call Van-Ed Equipment

Have a question?
Give us a call: 604-888-9020
Fill out a contact request

Product Overview

Max Operating Weight: 10,000lbs

The HLA SnowBlade puts you in the driver seat when it comes to clearing snow. The SnowBlade robust mouldboard has a precision engineered curve construction that folds and rolls the snow, limiting unwanted sticking, side tracking, and spill over. Equipped with a spring-trip feature, the cutting edge trips back if the blade hits a hidden object, limiting any damage so you can continue clearing. With other features such as the crossover relief valve, lateral float, and replaceable and reversible cutting edge, the HLA SnowBlade gets the job done right, every time.

Features
Options

2 Year Warranty – Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty
35° Angle with Crossover Relief Valve Protection – Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
Lateral Float – Allows blade to follow ground contours for better clearing performance.
Mouldboard Profile – Precision engineered curve rolls and folds snow. This reduces sticking, side tracking and spill over.
Replaceable, Reversible Cutting Edge – Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
Adjustable Skid Shoes – Allows you to set cutting depth for optimum performance and prolonged cutting edge life.

Rubber Cutting Edge – Allows blade to trip back if struck by hidden object limiting damage. Standard on SB3000R models.
Carbide Cutting Edges – Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt.
Floating Blade Hinge – This option adds a mechanical float to the blade. This allows the blade to better follow the surface contour. The float is designed to be simply locked out when not needed by rolling the blade forward.
Snowblade Marker – Add this to your blade for better visibility and blade position awareness.
Spill Guard – Available on all SnowWing models and the 3000, 4000, 5000, & 6000 series SnowBlades.
Curb Runner – Protects cutting edge from potential wear from rubbing against curbs etc.
Edge Flex Models – Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.
