Product Overview

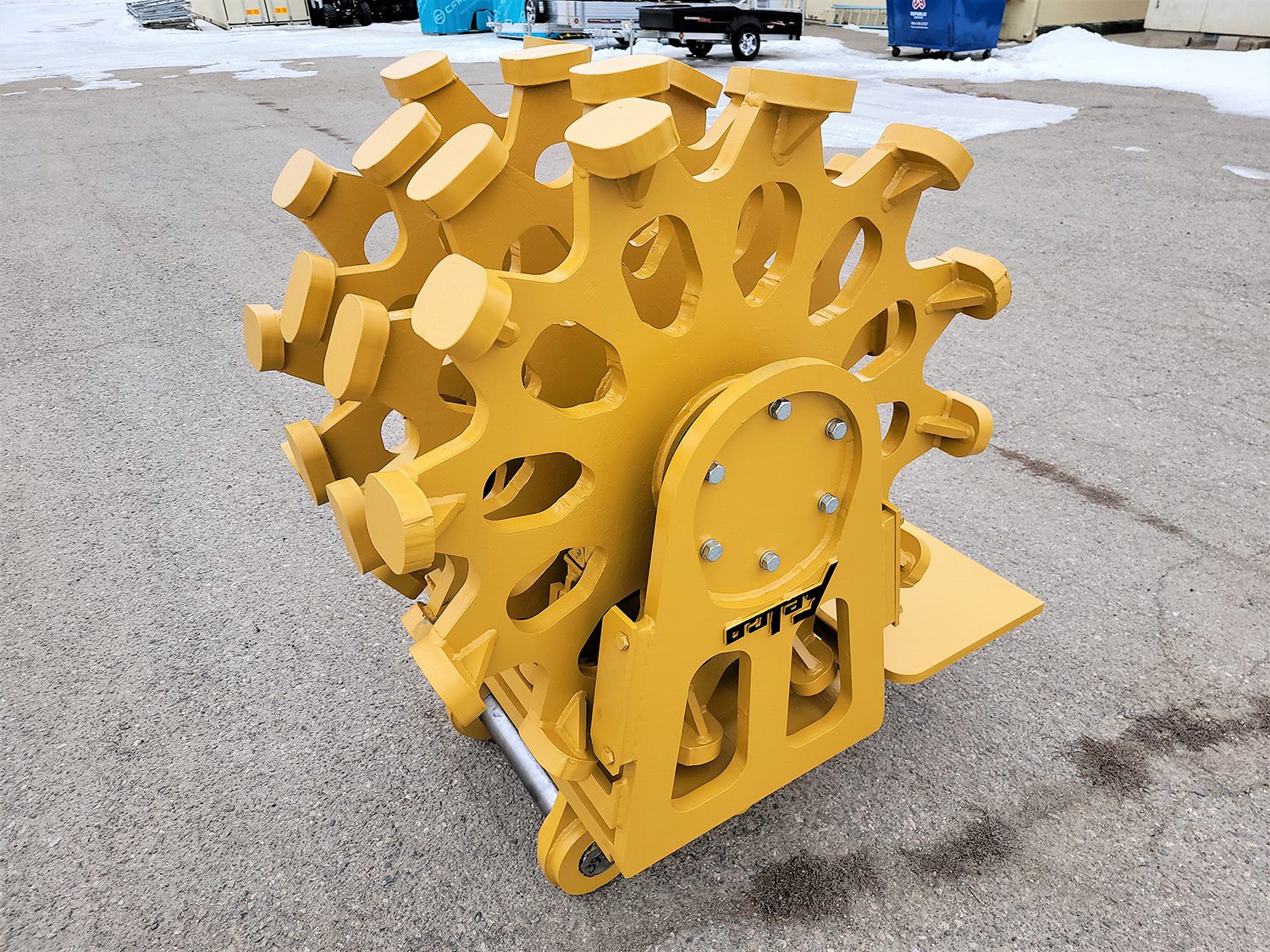

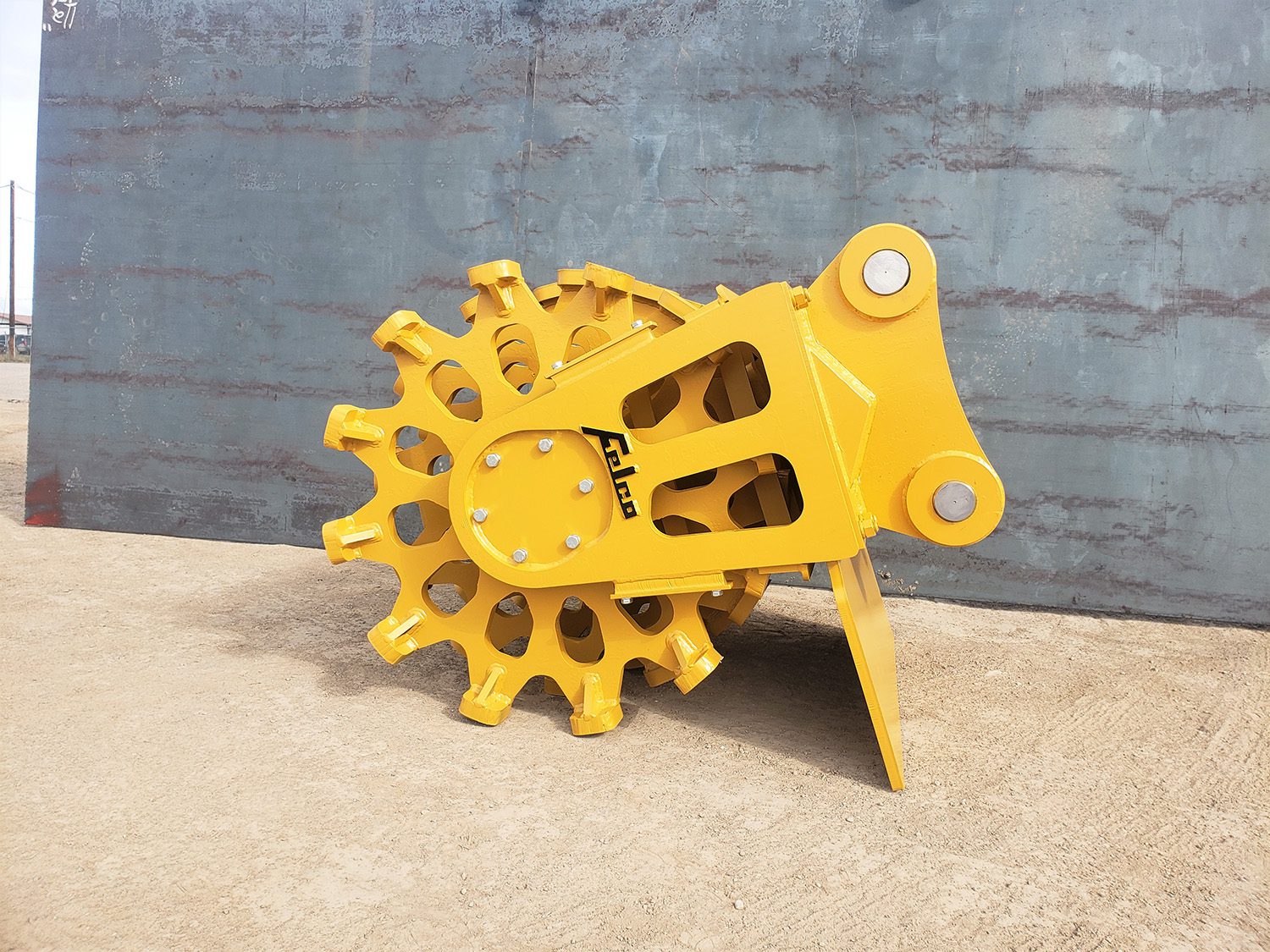

Felco Segmented Wheel Compactors combine traditional soil penetrating rims with our proven Sealed Journal Bearing (SJB) System. Protected within our rigid exterior frame, the maintenance-free design (no greasing) provides superior performance and less downtime due to its ability to withstand heavy use and is supported by an industry best FIVE-YEAR LIMITED WARRANTY.

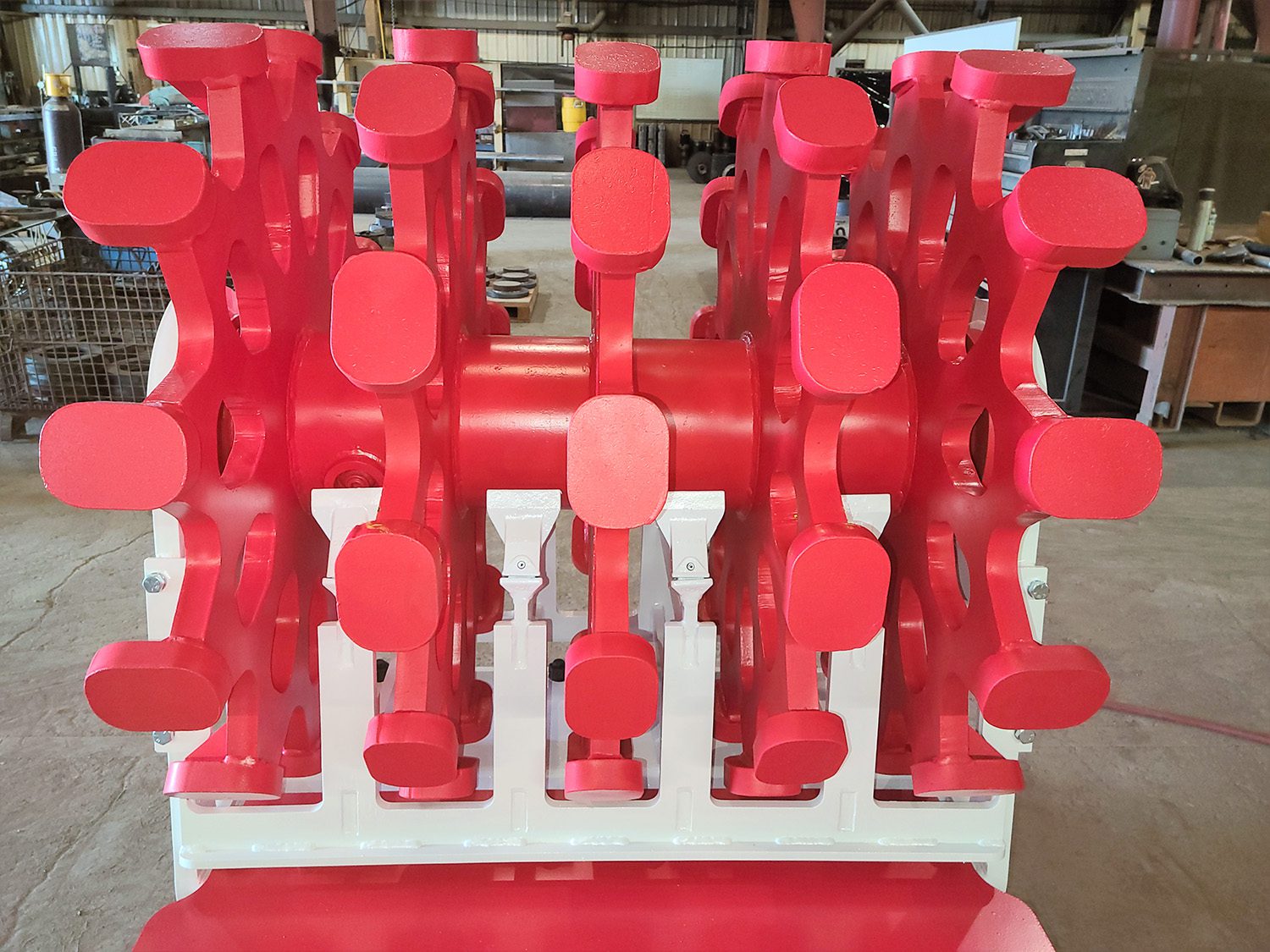

Bi-directional scraper teeth assemblies remove excess material between the segments, and the replaceable dirt teeth are a standard size and available from most dealers.
Bolt-On Ear Assemblies are standard with each wheel compactor – which allows use on other similar class excavators with different ear dimensions by purchasing an additional bolt-on ear assembly from Felco.
Linkage Pins
Available from 40mm to 130mm diameters
Bolt-On Leveling Blades
Felco Bolt-On Leveling blades can be mount on either side of the ear assembly, depending on how an operator prefers to push/pull material into the trench.
Replaceable Scraper Teeth / Adapters
Worn scraper teeth are easy to remove and replace. Scraper teeth keep the wheel clean and will improve the performance of your compaction attachment.
Bolt-On Ear Assemblies
Bolt-On Ear Assemblies are standard with each full size wheel compactor – which allows use on other similar class excavators with different ear dimensions by purchasing an additional bolt-on ear assembly from Felco.
Please provide the serial # on the Wheel Compactor which is located between the current set of ears, and the Make / Model of the excavator that you want the new ears to mount on.
|
Machine Weight (lbs.) |
Standard Size Width” x Diam.” |
Number of Rims |
Est. Weight (lbs.) |
Sealed Journal Bearing (SJB) |
|
45,000 – 60,000 |
|
|
|
|
|
|
24 x 35 |
3 |
2,400 |
SJB – E |
|
|
36 x 35 |
4 |
3,300 |
SJB – H |
|
60,000 – 100,000 |
|
|
|
|
|
|
24 x 44 |
3 |
3,210 |
SJB – E |
|
|
36 x 44 |
4 |
4,150 |
SJB – H |
|
|
48 x 44 |
5 |
5,130 |
SJB – H |
