Product Overview

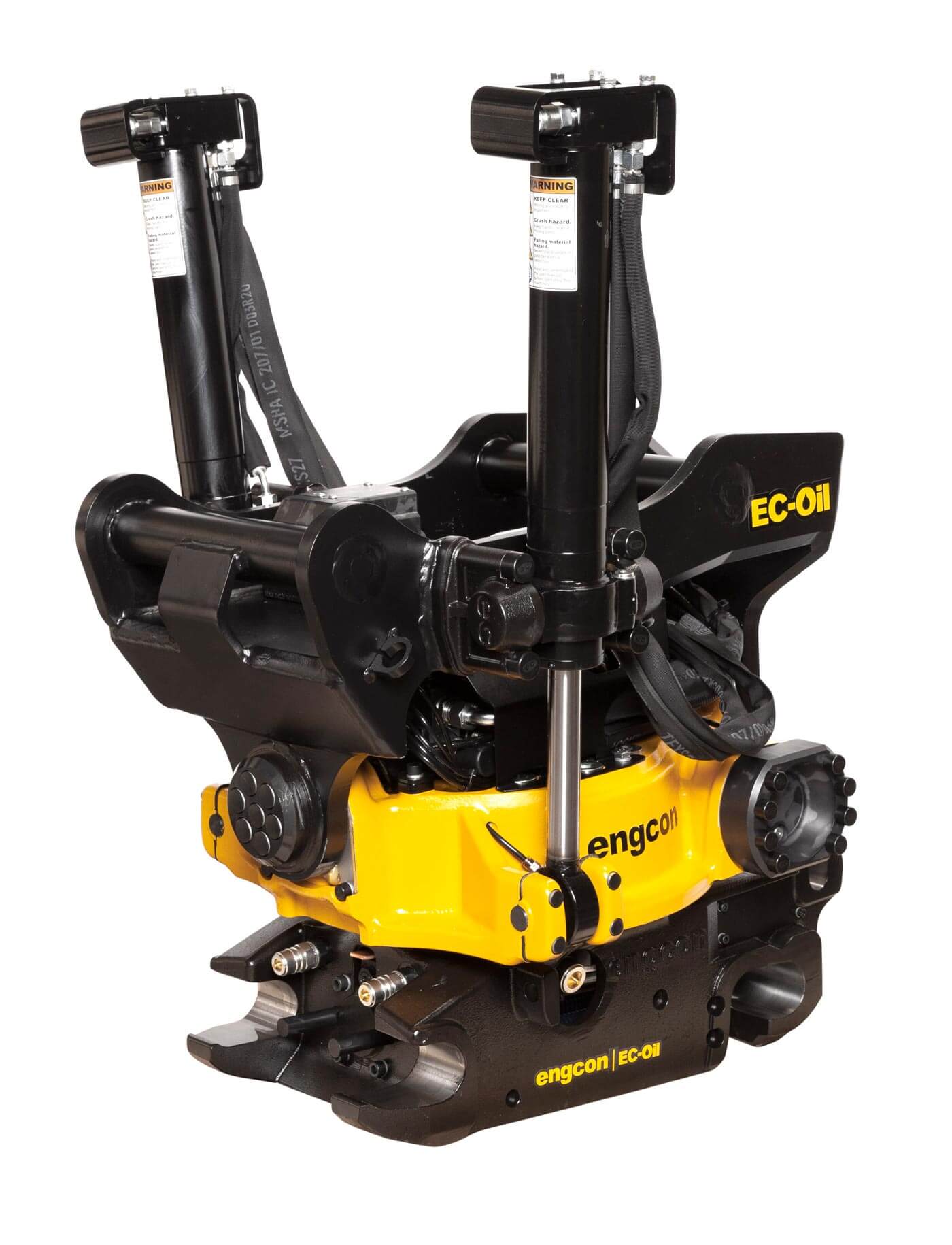

A compact, powerful tiltrotator with low weight and height for excavators up to 14 metric tons. If EC214 is selected with engcon’s standard Quick Coupler S45 or S60 and the DC2 proportional control system, EC-Oil automatic Quick Coupler system is offered as a standard. This means that the tiltrotator and hydraulic tools can be connected and disconnected without the operator needing to leave the cab.

  • The EC-Oil automatic Quick Coupler system connects the tiltrotator and hydraulic tools without the operator needing to leave the cab
  • Q-Safe quick coupler for high safety
  • Comes ready for detachable grabber GRD
  • Comes ready for rotating brush SWD
  • Comes ready for the QSC locking system to avoid wrongly connected or dropped buckets
  • Comes ready for a rotation sensor (ePS) for connection to the excavator guidance system
  • Central lubrication (a single grease point for the entire tiltrotator; can also be connected to the excavator’s central lubrication system)
  • Load-holding valves on tilt cylinders for high safety
  • Hardened piston rods
  • Up to ± 45-degree tilt angle for maximum agility
  • Rotation ∞
  • Quick coupler: Choose from S45 or S60 as standard equipment. For other purposes there are a few other hitch types available.



Control system: DC2 proportional control system comes standard for outstanding variable control and includes remote support capability, track / wheel steering, and boom slew. Custom control systems also available.

Electrical system: Can be adapted to 12V or 24V electrical systems.

Accessory: GRD detachable grabber cassette, SWD rotating brush.
