Model: BT-MECV460S

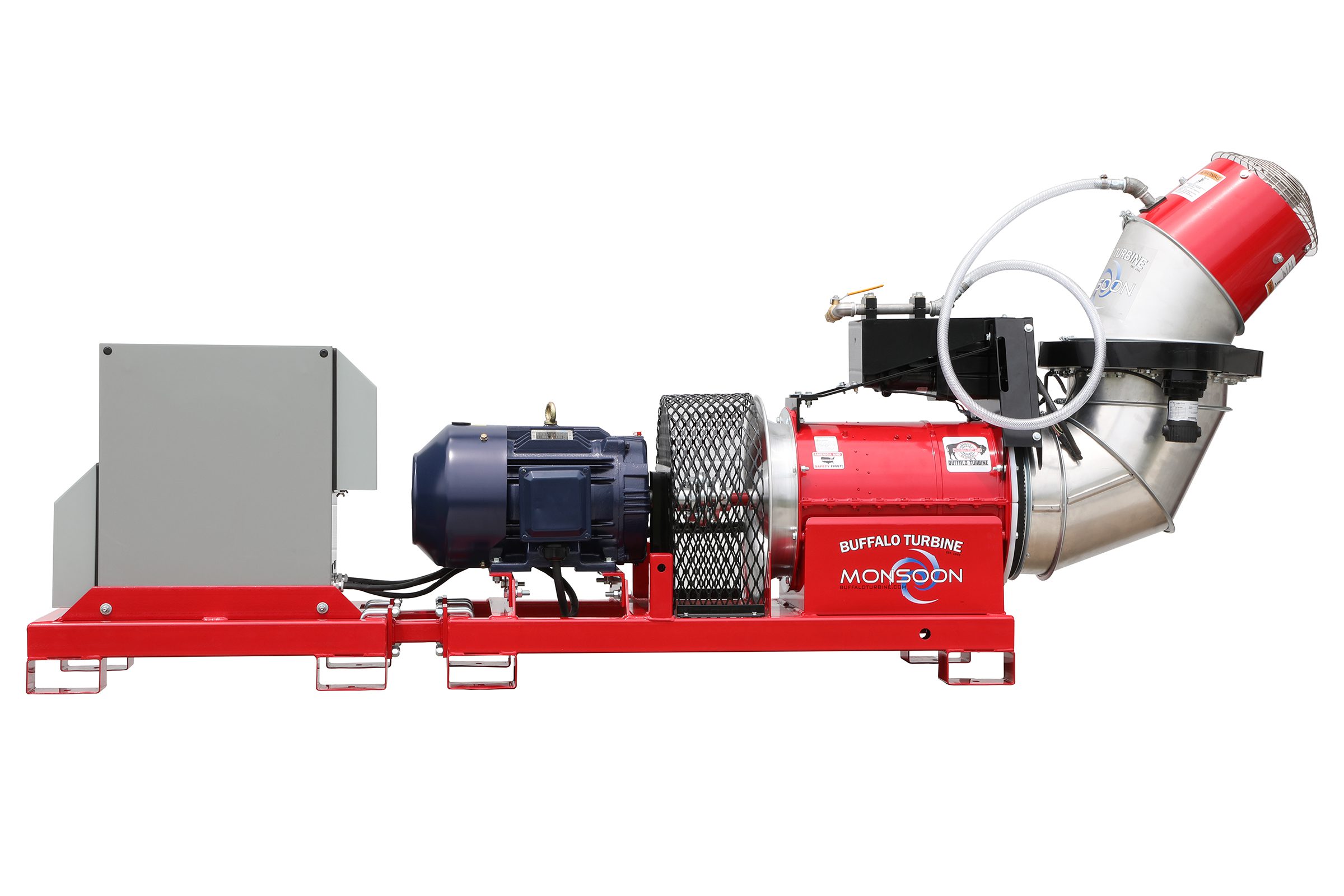

The Monsoon Electric Dust Controller misting system is a permanent mounted solution for any dust and odor control need.
Non-clogging proprietary Gyratory Atomizing Nozzle.
Up to 270 degrees oscillation.
Available in several voltages and frequencies to match available on site power.
Uses standard municipal water pressure and common 3/4″ garden hose connection.

Single, low maintenance non-plugging nozzle generates atomized water mist to control and suppress dust, odor and smoke particulates.

Up to 270 degrees oscillation provides wide variable coverage.

Variable frequency drive allows adjustable blower speed for optimal coverage.

Type	Skid
Debris Type	Dust/Odor
Acreage	1 to 3, 10+, 4 to 6, 7 to 9
Input Power	20HP 460 Volt 3 Phase Electric Motor
Start / Stop Control	Manual
Throttle Control	Manual
Nozzle	Gyratory Atomizing Nozzle
Nozzle Function	Manual
Nozzle Control	3 Oscillation Settings from 30 Degrees to 80 Degrees
Remote	Wired VFD Control Panel
Fuel Capacity	n/a
Battery	n/a
Trailer	n/a
Tires	n/a
Mounting	Oscillation stand
Overall Length w/ Nozzle	72 in
Frame Width w/ Wheels	22 in
Height	24 in
Weight	875 lbs (397 kg)
Shipping Weight	978 lbs (445 kg)
Misting System	Gyratory Atomizing Nozzle
Hose Input	3/4 in utility / garden hose
Minimum Water Volume	1/3 gallon per minute
Maximum Water Volume	20 gallons per minute @120 psi
Minimum Water Pressure	40 psi
Maximum Water Pressure	120 psi
Droplet Size	50-200 micron
Throw Distance Horizontal	Up to 125 ft in neutral wind conditions
Throw Distance Vertical	Up to 50 ft in nuetral wind conditions
Machine Warranty	10 Year Manufacturer Warranty
Engine / Motor Warranty	2 Year Warranty
Prop 65	WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
