Crop Maintenance
Buffalo Turbine CSM2 Vector Sprayer/Granular
Crop Maintenance
Buffalo Turbine CSM2 Vector Sprayer/Granular
ASK A QUESTION
Call Van-Ed Equipment
Financing may be available Details
Have a question?
Give us a call: 604-888-9020
Fill out a contact request
Have a question?
Give us a call: 604-888-9020
Fill out a contact request
Key Specs
-
Type
Skid
-
Input Power
25 HP Carbureted Gasoline Engine
-
Tank Size
50 gal
-
Weight
1,693 lbs with hopper and trailer
-
Throw Distance Horizontal
100 - 200 ft in optimal conditions
-
Acreage
1 to 3, 10+, 4 to 6, 7 to 9

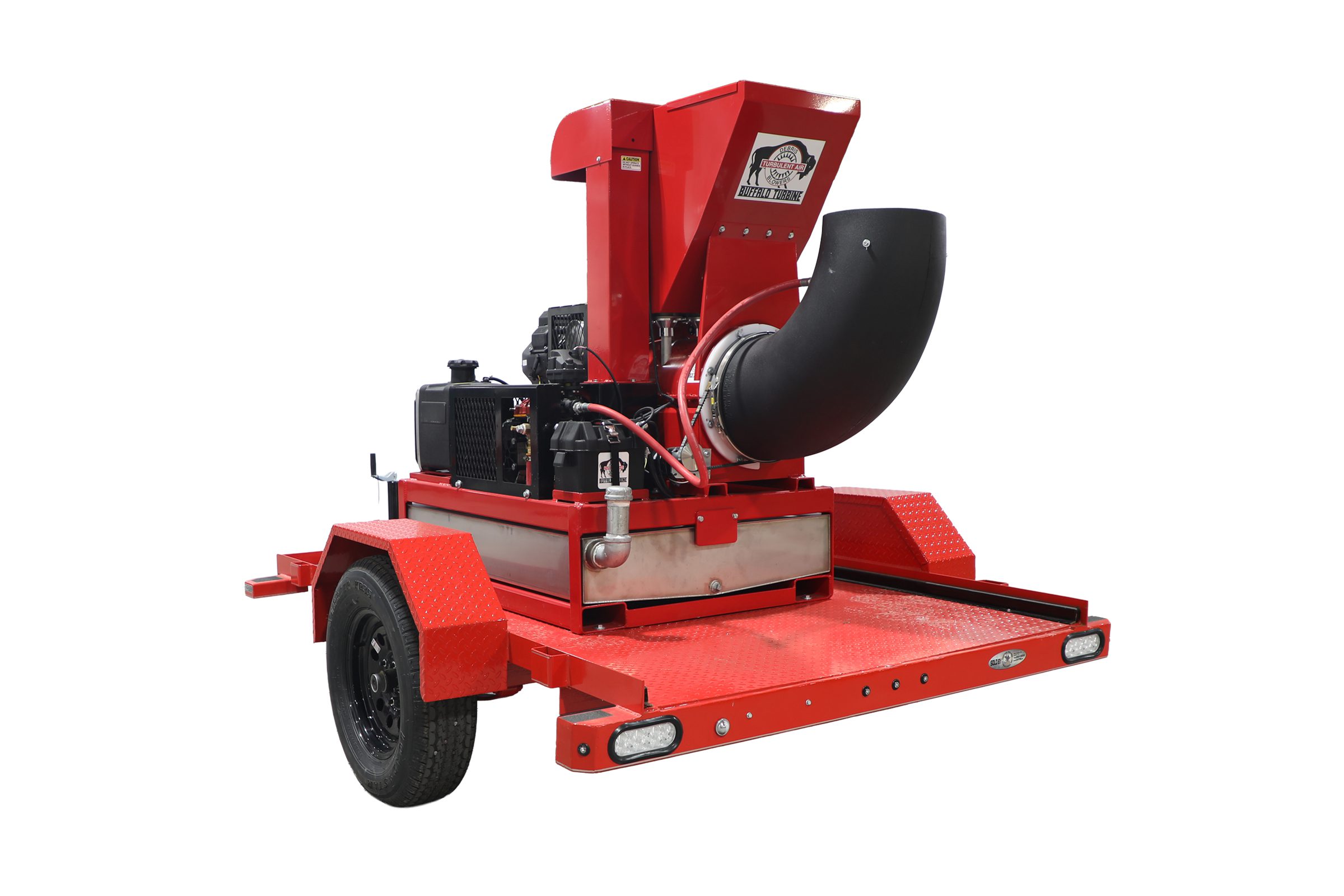

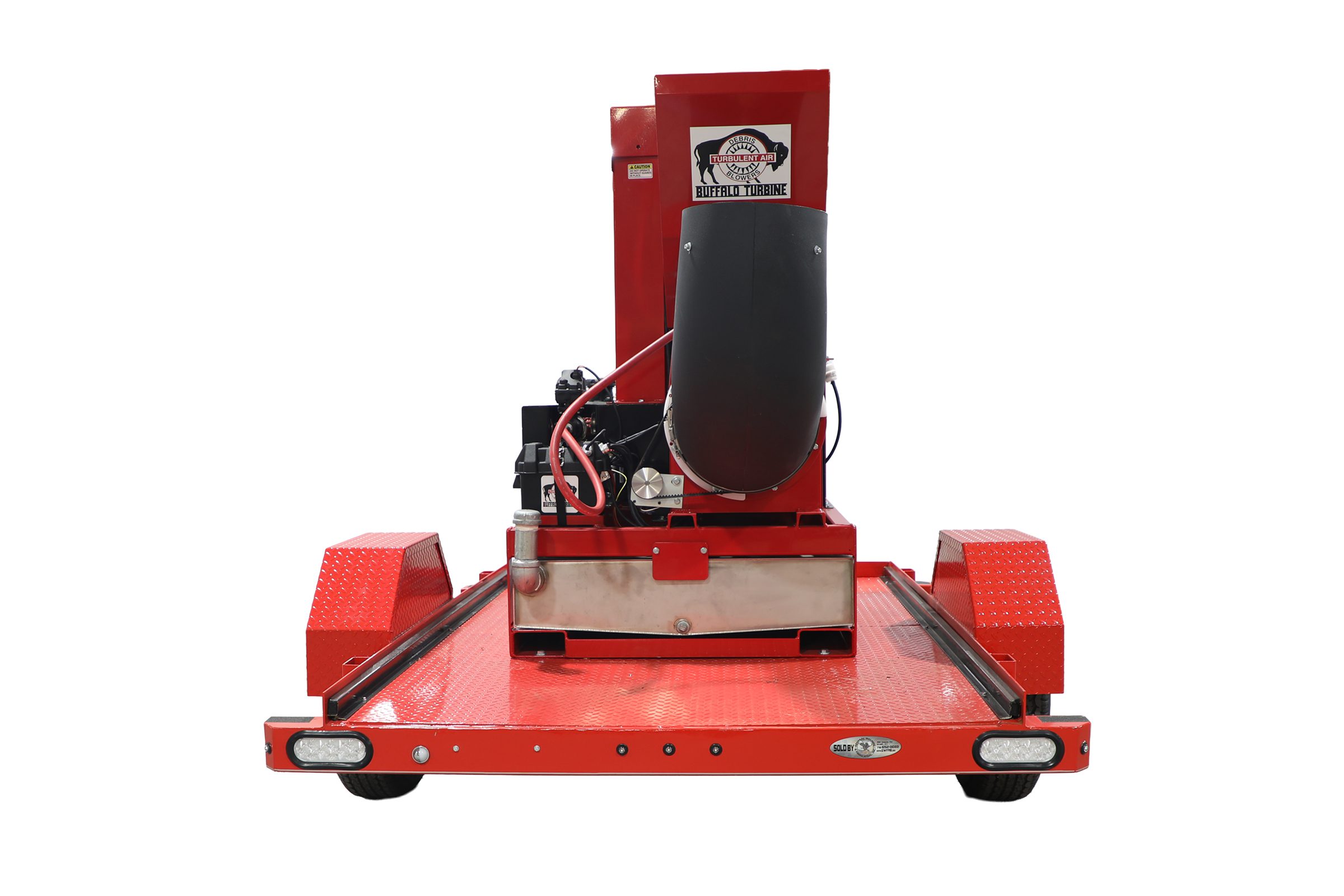

Product Overview
Model: BT-CSM2
- The CSM2 Vector sprayer/duster is ideal for barrier spraying, larvicide and insect control.
- Turbulent air applies wide coverage and deep penetration of thick vegetation.
- Spray and/or granular with optional hopper.
- 18ft. corded remote control panel.
Tee Jet Style Sprayer Nozzles.
4 tee jet style sprayer nozzle with manifold block, nozzle tips, caps and filters.
Corded Remote Control.
Cab control box with 18ft. cord.
Optional Dust/Granular Bin.
Optional 4 cu. ft. dust/granular bin with electric clutch and gate adjustment.
| Spec | Value |
| Type | Skid |
| Debris Type | Crop, Insect |
| Acreage | 1 to 3, 10+, 4 to 6, 7 to 9 |
| Input Power | 25 HP Carbureted Gasoline Engine |
| Start/Stop Control | Corded Remote Start / Stop |
| Throttle Control | Corded Remote |
| Nozzle | 360 degree T-Jet Style |
| Nozzle Function | Corded Remote |
| Nozzle Control | 360 Degree Rotation |
| Remote | Corded Handheld (water resistant) |
| Fuel Capacity | 6 gal |
| Battery | 12 volt, 300 cold cranking amps |
| Trailer | DOT Trailer package Option |
| Mounting | Skid mount or tow behind trailer |
| Overall Length w/ Nozzle | 136 in |
| Frame Width w/ Wheels | 80 in |
| Height | 77 in |
| Skid Mount – Frame Length | 135 in |
| Weight | 1,693 lbs with hopper and trailer |
| Misting System | T-Jet style Nozzle System |
| Tank Size | 50 gal |
| Throw Distance Horizontal | 100 – 200 ft in optimal conditions |
| Throw Distance Vertical | Up to 50 ft in nuetral wind conditions |
| Machine Warranty | 1 Year Manufacturer Warranty |
| Engine / Motor Warranty | 3 Year Engine Manufacturer’s Warranty |
