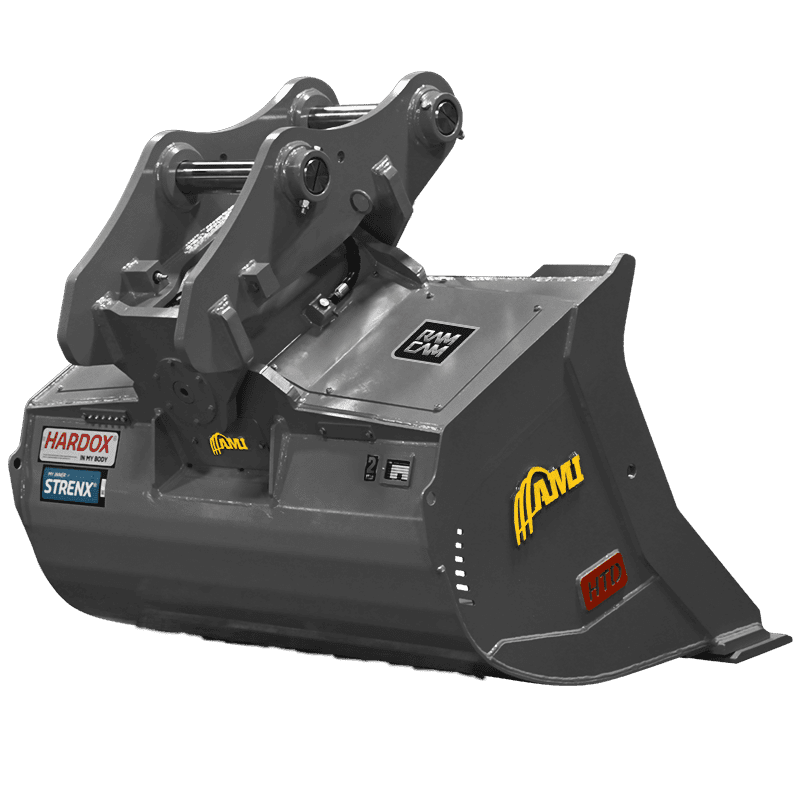

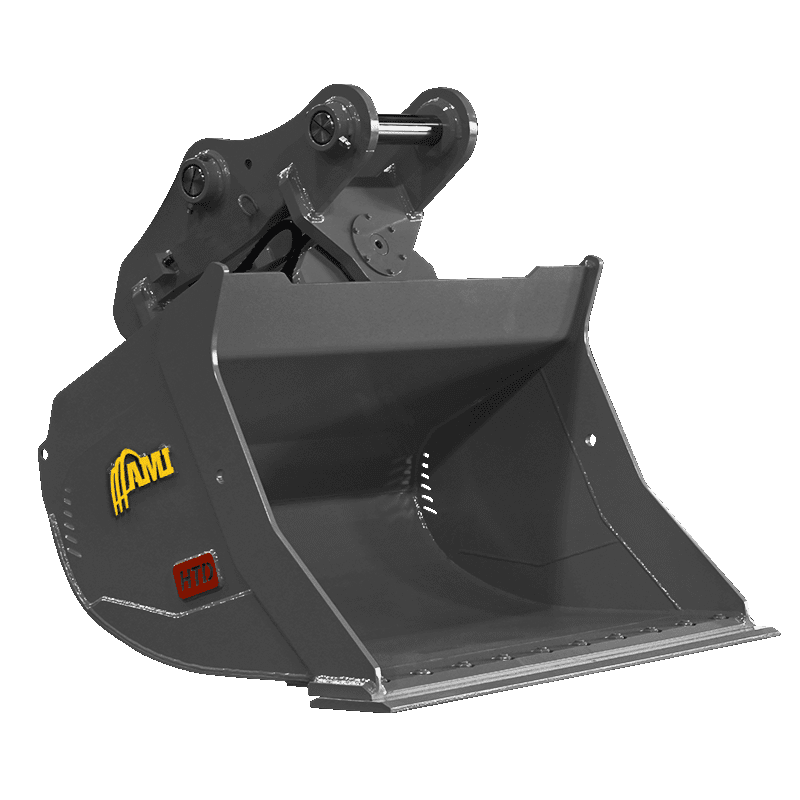

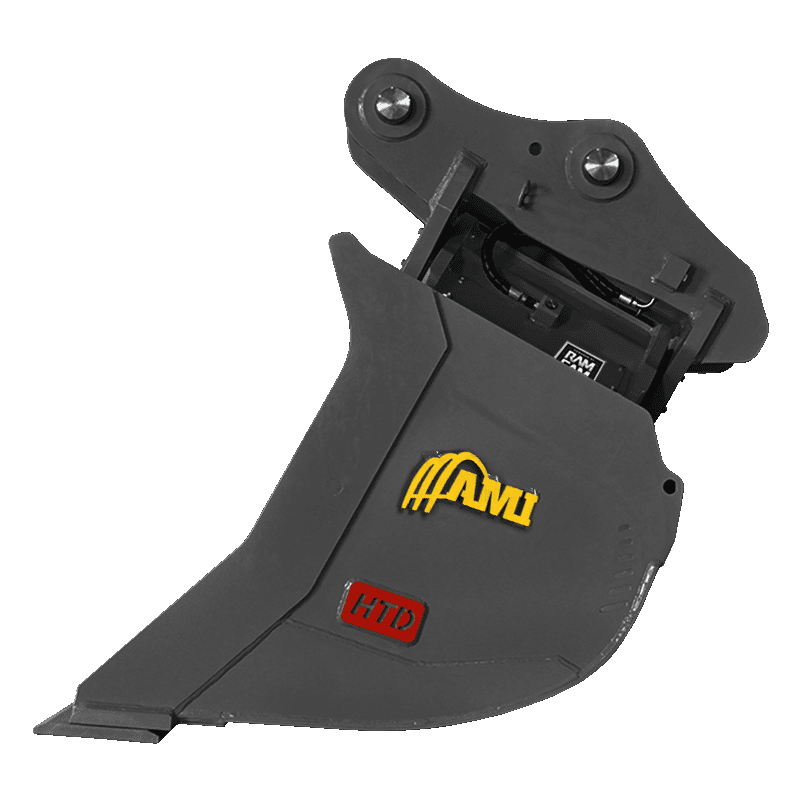

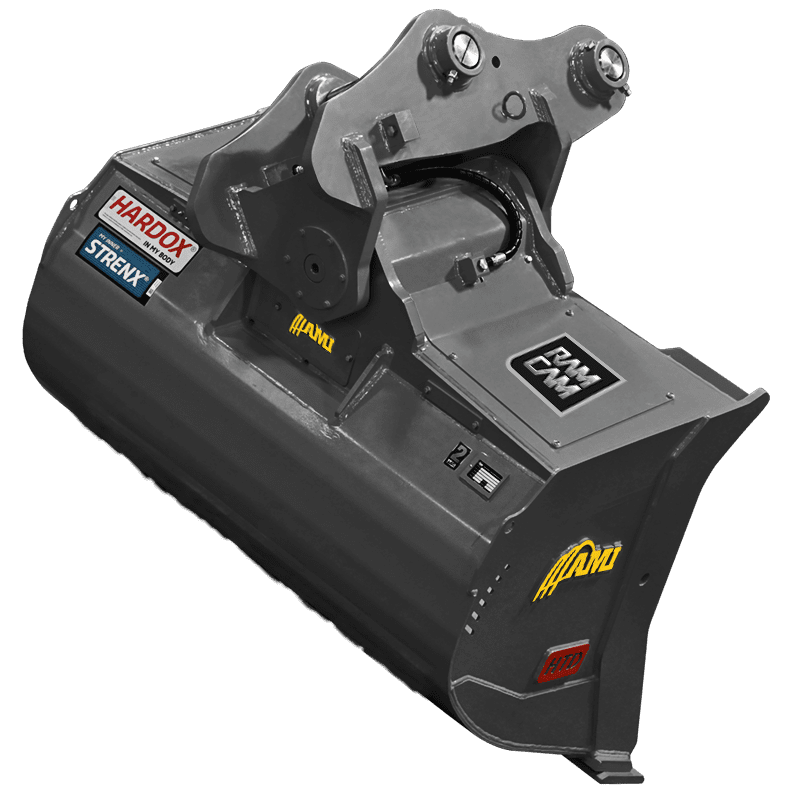

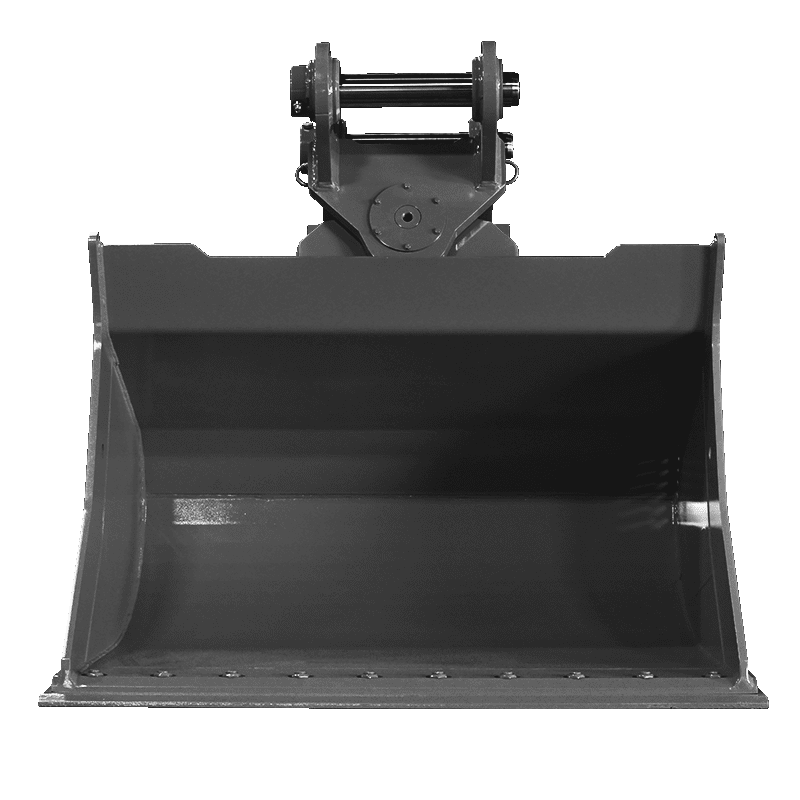

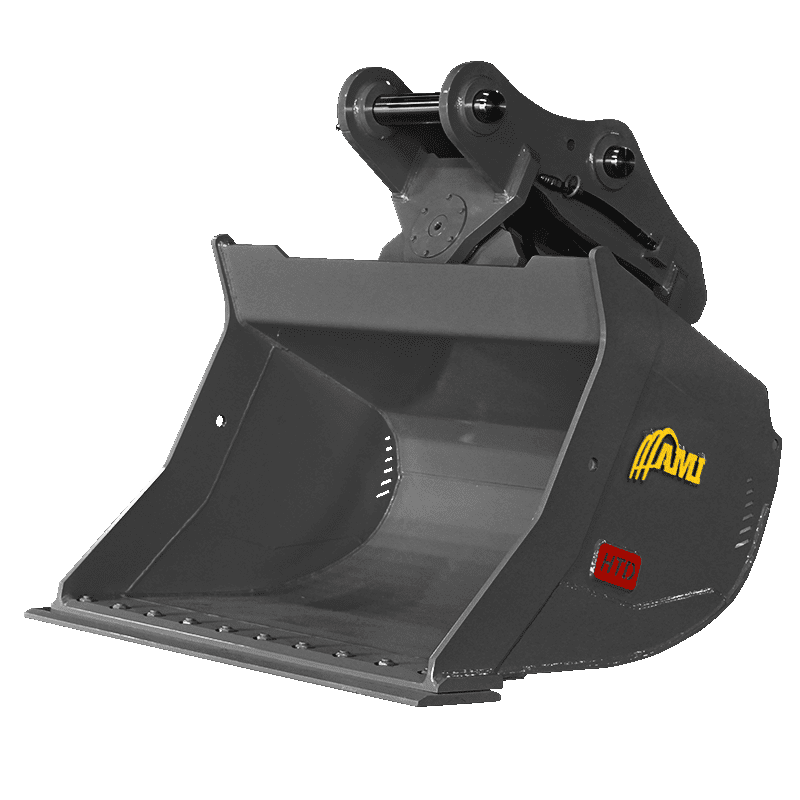

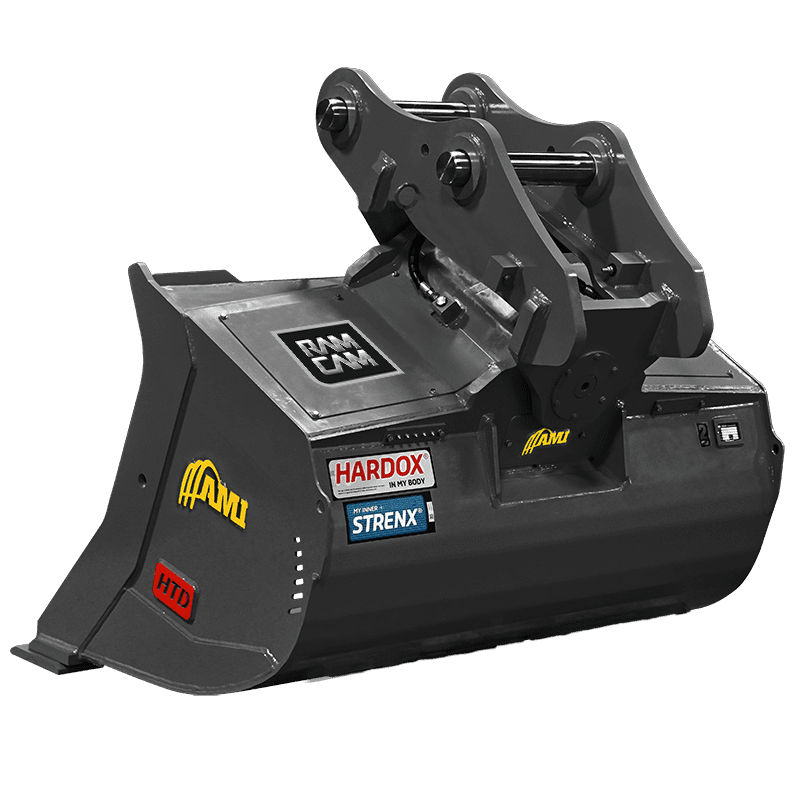

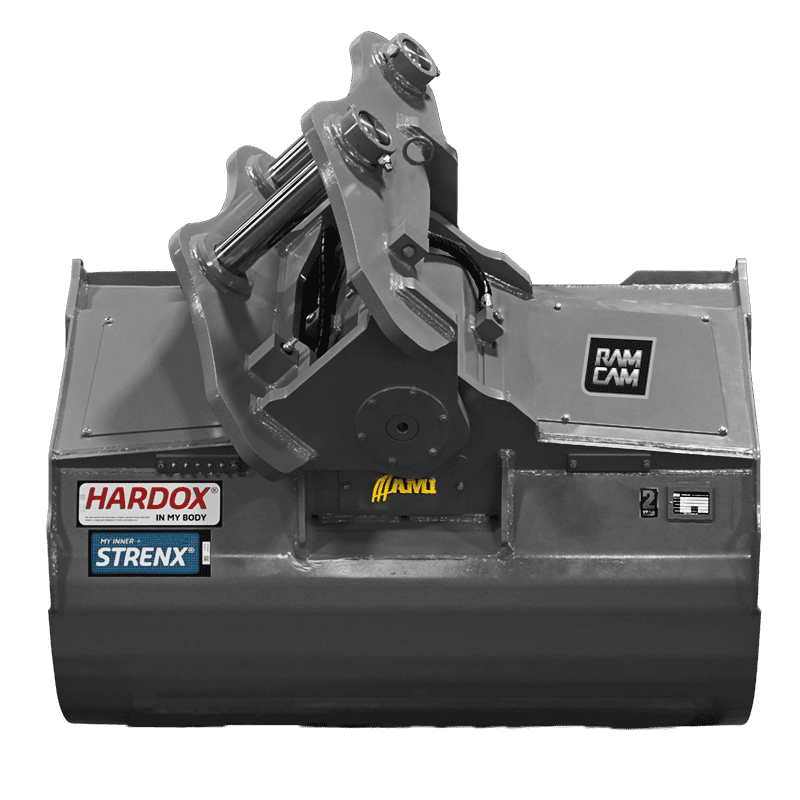

AMI Attachments Tilt Bucket Powered by RAMCAM®

AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM® AMI Attachments Tilt Bucket Powered by RAMCAM®
Previous
Next

Side Tilt Buckets

AMI Attachments Tilt Bucket Powered by RAMCAM®

ASK A QUESTION REQUEST RENTAL ONLINE Call Van-Ed Equipment
Financing may be available Details

Have a question?
Give us a call: 604-888-9020
Fill out a contact request
Brochure

Key Specs

  • Excavator Class

    24,000 – 115,000 lbs

  • Bucket Width

    54" – 84"

  • Capacity

    0.54 – 3.00 yd³

Package pricing and discounts are available for long-term rentals, as well as low-hour projects. Please reach out and we’ll custom tailor your rental package accordingly.

Product Overview

AMI Attachment’s Tilt Bucket Powered by RAMCAM® – the ultimate heavy-duty attachment designed to conquer any task with ease. This rugged and powerful tilt bucket is built to last, providing reliability in demanding conditions. Equipped with RAMCAM® technology, the hydraulic cylinders are fully protected with minimal hose exposure, reducing damage and downtime. No more broken cylinders from rock obstruction, interference from material build-up, or frozen dirt on bucket’s mechanical components. The Tilt Bucket Powered by RAMCAM® is the first Tilt Bucket that’s got every angle covered.

RAMCAM®

RAMCAM® is a revolutionary new drivetrain that allows for mechanical rotation using hydraulic cylinders within a protective casing. Patent Pending.

SPLINED PIN

More than just a pivot point, RAMCAM™ features a splined pin that stays securely in place. As the hydraulic cylinders push against the lobes, the torque is transferred to the splines providing rigidity and strength.

Grease Bank

With all the grease points now protected, the Tilt Bucket powered by RAMCAM™ features a grease bank for simple and routine maintenance.

90° Rotation

With 90-degree tilt, the RAMCAM™ drivetrain delivers the same tilt range as AMI Attachments’ conventional tilt bucket.

Tapered Sidewalls

Along with a replaceable bolt-on cutting edge, the bucket includes tapered sidewalls, reducing friction between material and bucket when unloading.

Dual Radius Heel

The heel profile incorporated a dual radius contour, minimizing surface contact while curling.

Tilt Bucket Powered by RAMCAM®

FastTrack Category Model Machine Class Width Capacity Weight
130 HTDRC2433E54 24,000 – 33,000 lbs 54″ 0.540 yd³ 1600 lbs
130 HTDRC2433E60 24,000 – 33,000 lbs 60″ 0.610 yd³ 1505 lbs
150 HTDRC2433E54 33,000 – 45,000 lbs 54″ 0.540 yd³ 1600 lbs
150 HTDRC2433E60 33,000 – 45,000 lbs 60″ 0.610 yd³ 1505 lbs
150 HTDRC3340E54 33,000 – 45,000 lbs 54″ 0.885 yd³ 1775 lbs
150 HTDRC3340E60 33,000 – 45,000 lbs 60″ 0.98 yd³ 1875 lbs
200 HTDRC4045E60 45,000 – 55,000 lbs 60″ 1.395 yd³ 2500 lbs
200 HTDRC4045E66 45,000 – 55,000 lbs 66″ 1.555 yd³ 2705 lbs
200 HTDRC4045E72 45,000 – 55,000 lbs 72″ 1.715 yd³ 2870 lbs
250 HTDRC4045E66 55,000 – 65,000 lbs 66″ 1.555 yd³ 2705 lbs
250 HTDRC4560E60 55,000 – 65,000 lbs 60″ 1.413 yd³ 2975 lbs
250 HTDRC4560E66 55,000 – 65,000 lbs 66″ 1.655 yd³ 3115 lbs
250 HTDRC4560E72 55,000 – 65,000 lbs 72″ 1.83 yd³ 3550 lbs
300 HTDRC6080E66 65,000 – 90,000 lbs 66″ 2.250 yd³ 4075 lbs
300 HTDRC6080E72 65,000 – 90,000 lbs 72″ 2.5 yd³ 4740 lbs
300 HTDRC6080E84 65,000 – 90,000 lbs 84″ 3.00 yd³ 5210 lbs
400 HTDRC80100E78 90,000 – 115,000 lbs 78″ 2.660 yd³ 5960 lbs
400 HTDRC80100E84 90,000 – 115,000 lbs 84″ 2.880 yd³ 6210 lbs

Industry:

General Construction
Mining & Quarry
Trenching & Excavation
